B&R 8LSA75.E1022D200-0 | Heavy-Duty ACOPOS Motor

Description

B&R 8LSA75.E1022D200-0 | Heavy-Duty ACOPOS Motor

Dynamic Product Introduction

When you are moving heavy tooling or driving high-tonnage axis lead screws, smaller Size 4 or 5 frames simply run out of dynamic headroom. That is where the 8LSA75.E1022D200-0 comes into play. Delivering a massive ~29 Nm continuous stall torque from a Size 7 flange frame, this motor provides the raw torque density required for high-load main drives without needing external inline reduction gearboxes that introduce backlash.

In field retrofits, the primary advantage of the 8LSA75 series lies in its optimized stator winding topology and integrated EnDat absolute encoder. When paired with high-output ACOPOS 1180 or ACOPOS multi-drive modules, the servo system handles instantaneous peak torque spikes up to ~95 Nm without tripping overcurrent limits. The drive automatically pulls motor parameters from the internal EEPROM upon initial boot—sparing commissioning engineers from manual current loop tuning or parameter entering.

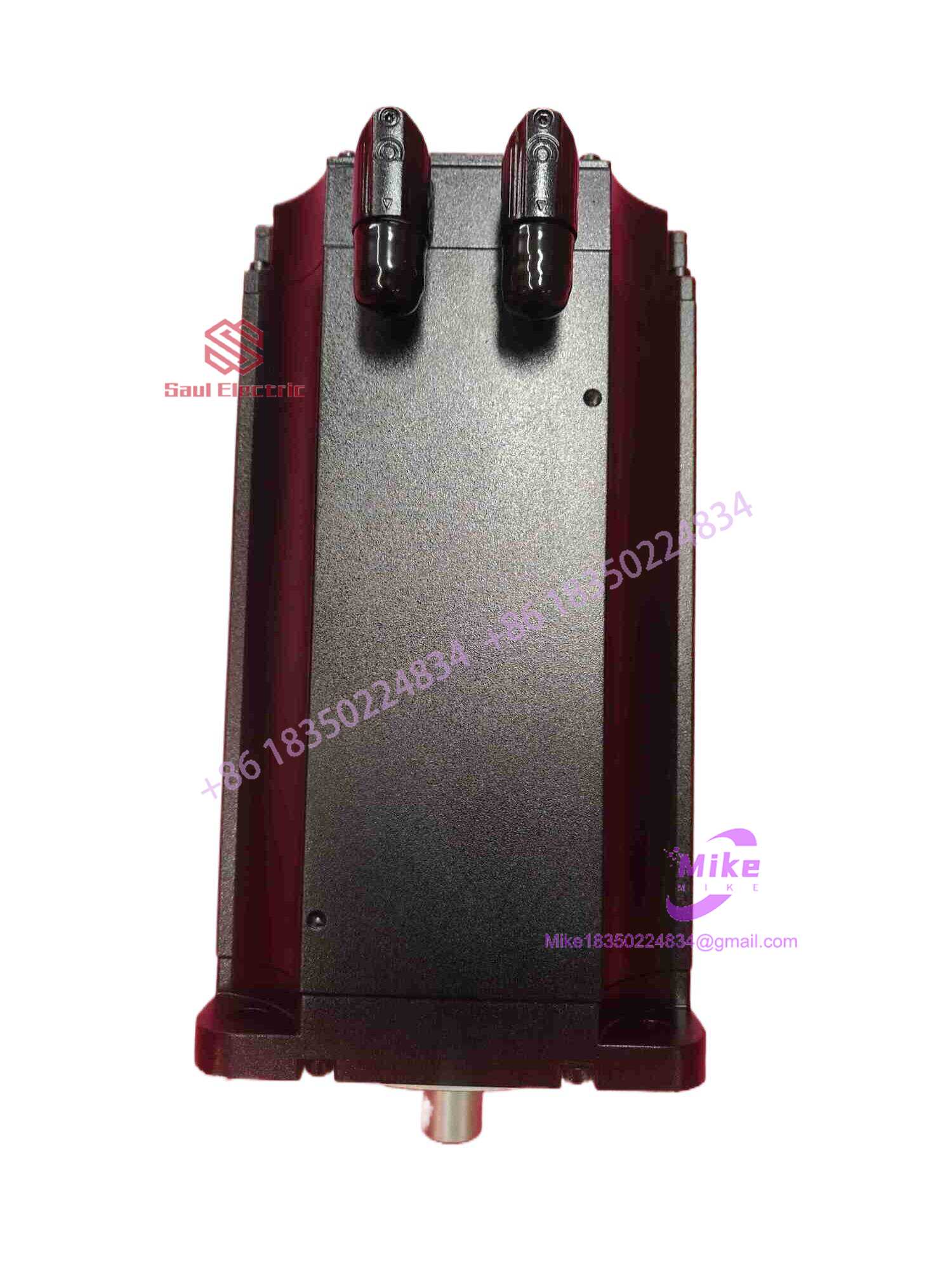

8LSA75.E1022D200-0

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Sourcing replacement high-torque servo motors from surplus channels requires complete transparency. Installing a 30kg motor with compromised winding insulation or a damaged encoder shaft can cause catastrophic machine downtime. Here is our exact multi-stage QC procedure before shipping:

1. Inbound Mechanical & Electrical Traceability:

   We inspect the 32mm+ shaft for keyway wear and measure radial runout with precision dial indicators. Serial numbers are verified against B&R factory build sheets to ensure authentic OEM origin.

2. ACOPOS Power Bench Simulation:

   The motor is mounted to a heavy-duty test fixture connected to a high-capacity ACOPOS drive rack running Automation Studio.

3. Diagnostic Test Execution:
   • Serial Handshake & Parameter Verification: We query the EnDat encoder memory to confirm zero bit-transmission errors and verify auto-population of stator resistance, inductance, and thermal thresholds.
   • Full-Load Thermal Profiling: The unit runs a 3-hour dynamic velocity profile up to 2200 RPM under loaded conditions, monitoring real-time stator temperature rise via internal sensor channels.
   • High-Voltage Megger Test: A 1000V DC megohmmeter test across phase-to-phase and phase-to-ground guarantees zero insulation breakdown.
4. Final Shipping Prep:

   Shaft extensions receive rust-preventive grease and protective sleeves. The motor is secured inside custom reinforced, high-density foam packaging to handle its ~30kg weight during transit.

The Field Engineer’s Pitfall Guide

• ❗ Lifting & Rigging Stress on Connector Assemblies:

  Because an 8LSA75 motor weighs nearly 30 kg, technicians often attempt to steady or hoist the motor using the circular SpeedTEC connectors or terminal box for leverage. Doing so will crack the aluminum end-bell housing or shear the internal wiring connections—causing instant open-circuit thermal faults or ground shorts. Always use the cast lifting eyelets on the motor body.

• ❗ Coupling Force & Axial Bearing Overloading:

  Never use a hammer or mechanical driver to force gear couplings or pulleys onto the 8LSA75 shaft. Direct axial shocks transmitted through the shaft will fracture the precision ball bearings and shatter the rear optical EnDat encoder disk located directly behind the bearing housing. Always draw couplings on using the threaded center tap on the shaft nose.

• ❗ High-Inertia Overvoltage Regenerative Spikes:

  Decelerating a heavy load driven by a 29 Nm motor at 2200 RPM returns immense kinetic energy back into the ACOPOS DC bus. If your drive system lacks a properly sized external braking resistor, the drive will trip on DC Bus Overvoltage Fault 6001 during emergency stops. Always verify braking resistor capacity when replacing these high-inertia frames.

Intent-Driven FAQ

Will my ACOPOS drive automatically recognize this Size 7 motor?

Yes. The embedded EnDat encoder contains an electronic nameplate holding all factory motor parameters. Upon powering up the ACOPOS drive in Automation Studio, the drive reads the motor properties automatically and sets the appropriate current, voltage, and thermal limits.

What is the main operational difference between 8LSA75 and smaller 8LSA55 motors?

The 8LSA75 belongs to B&R’s Size 7 frame family (190mm flange). It delivers dramatically higher continuous torque (~29 Nm vs ~12.5 Nm) and peak torque (~95 Nm), making it suitable for primary machine drives rather than auxiliary positioning axes.

Can I hot-swap the power or feedback cables while the drive’s DC bus is powered?

No. Disconnecting or connecting cables while the ACOPOS DC bus is energized causes severe electrical arcing across high-current power pins and introduces destructive voltage transients onto the low-voltage EnDat signal wires, instantly destroying the internal encoder electronics.

What should I check if Automation Studio reports a motor overtemperature error upon installation?

First, verify that the feedback cable is fully seated and locked. The internal thermal sensor signal routes through dedicated pins on the encoder connector. An unseated connector or pushed-back pin creates an open circuit, causing the ACOPOS drive to read an artificial thermal fault above 150^\circC.

How do I verify if an 8LSA75 motor is factory sealed or previously used?

Examine the mounting flange face, keyway, and connector gold pins. Factory-sealed stock shows zero bolt clamping rings or paint scraping on the mounting holes, unmarred shaft keyways, pristine gold connector pins without insertion tracking, and original protective caps intact over the shaft and electrical connectors.
