B&R 5P81451322.002-00 | Multi-Slot Industrial IPC Assembly

Description

B&R 5P81451322.002-00 | Multi-Slot Industrial IPC Assembly

Product Introduction

The 5P81:451322.002-00 represents a specific, fully configured system build of B&R’s Automation PC 810 (APC810) series. Engineered to act as the primary computing core in demanding manufacturing cells, CNC machinery, and packaging lines, this industrial PC bridges hard real-time PLC control with enterprise-level SCADA database operations.

Constructed with a heavy-duty galvanized steel housing, the 5P81:451322.002-00 utilizes passive heatsink cooling to maintain system stability in environments prone to high vibration and dust. It houses the CPU mainboard, 24V power supply module, internal slide-in drive bays, and expansion slots for fieldbus cards (such as POWERLINK or PROFIBUS). Connecting directly to local monitors or streaming video over long distances via Smart Display Link (SDL), replacing a faulty system chassis with a bench-tested, genuine unit restores immediate communication across your plant subnets.

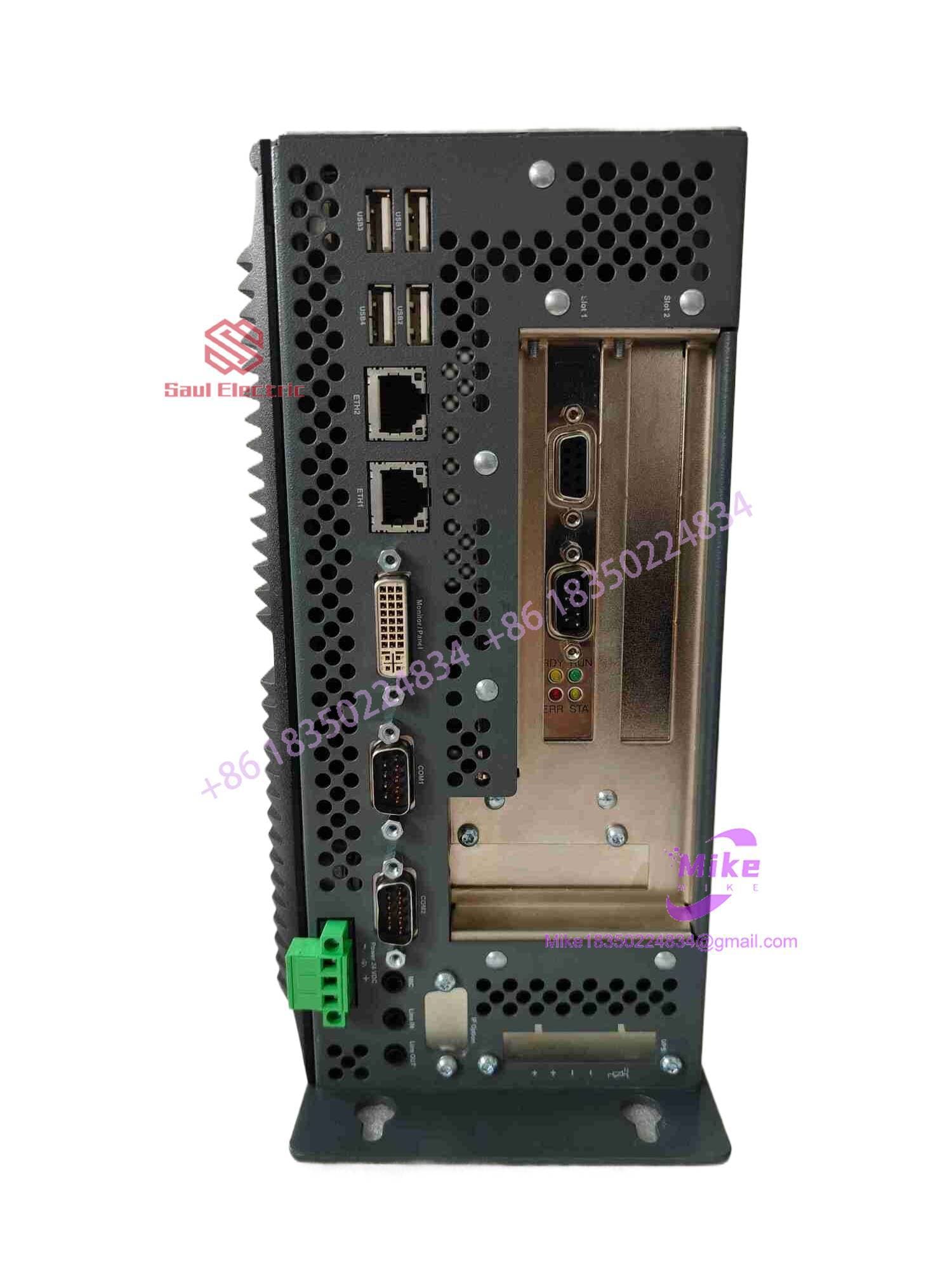

5P81451322.002-00

Key Technical Specifications

Application Scenarios & Pain Points

Field Experience: A high-speed automotive stamping plant faced unexpected line dropouts whenever their central IPC suffered random thermal throttling and lost its connection to the motion drives. The issue was traced to a degraded motherboard power rail on their original unit. Swapping in a pre-tested 5P81:451322.002-00 chassis restored reliable 24V supply regulation and cleared all network timeout errors.

• With Genuine 5P81:451322.002-00: Seamless execution of B&R Automation Runtime, zero frame loss on fieldbus channels, and long-term immunity to electrical switching noise.
• Without (Third-Party / Uncertified IPC): Random PCI backplane bus locks, dropped handshakes over Smart Display Link runs, and loss of non-volatile retain variables during unexpected power outages.
• Central Control Cabinets: Coordinates multi-axis motion control, safety logic, and high-speed I/O lines in unified automation skids.
• Remote Visualization Systems: Drives remote Automation Panels across long distance runs using integrated SDL display transmitter modules.

QA & Live Testing SOP (Trust Signal)

Every 5P81:451322.002-00 unit pulled from our inventory undergoes a multi-stage bench qualification process prior to shipping:

1. Physical & Chassis Inspection: We inspect the galvanized casing, front cover door, status LEDs, and backplane slot connectors under magnification to verify zero physical strain or pin damage.
2. Power Supply & Memory Validation: The internal 24V DC-to-DC power stage is tested under full electrical load, and the onboard SRAM backup battery is checked for stable voltage retention.
3. I/O & Link Communication Audit: Dual Gigabit Ethernet ports, USB 2.0 channels, RS232 interfaces, and DVI/SDL display links are stress-tested to ensure continuous data transmission.
4. Thermal Stress Sweep: The IPC is subjected to multi-hour CPU stress testing in a heated test room to verify passive heatsink heat dissipation under load.
5. Anti-Static & Heavy ESD Packaging: Cleared units are cleaned, wrapped in ESD protective shielding, and secured inside double-walled foam-lined shipping cases.

Field Engineer’s Pitfall Guide

• ❗ Match Complete Suffix Code: B&R uses the specific numbers after the colon (like :451322.002-00) to define the exact internal backplane, CPU, and interface option board installed. Always verify that this full part code matches your original hardware to prevent slot card mismatch errors.
• ❗ Retain SRAM Battery During Swap: The 5P81 contains a 3V lithium coin cell behind the front orange access door. When replacing a unit, ensure the battery is live or transfer your machine retain data via Automation Studio to avoid losing critical calibration values.
• ❗ Secure Slide-in Storage Media: Ensure CompactFlash cards or slide-in drive trays are fully seated and locked into the internal SATA/IDE backplane. Loose drive trays will cause boot failure messages (such as “No Boot Device Found”) at power-up.

Intent-Driven FAQ

Q: What is the exact difference between a generic 5P81 and the 5P81:451322.002-00?

A: “5P81” is the overall product family prefix (APC810), while “:451322.002-00” defines the specific factory-installed CPU type, RAM allocation, backplane slot setup, and interface options.

Q: Can I run both Windows OS and real-time B&R Automation Runtime on this unit?

A: Yes. The 5P81:451322.002-00 supports dual-boot or hypervisor operation, allowing real-time PLC logic (Automation Runtime) to run alongside standard Windows operating systems for SCADA applications.

Q: Does this industrial computer require external cooling fans?

A: The core system is designed for passive convection cooling via its industrial aluminum heatsink. Depending on ambient cabinet temperatures and installed high-draw expansion cards, an optional fan kit can be added.

Q: What power connection does the unit require?

A: It operates on a nominal 24 VDC (±25%) power supply connected through a standard B&R 3-pin cage-clamp terminal plug.

Q: What condition are these units supplied in, and what warranty is included?

A: We supply fully bench-tested New Surplus and reconditioned original B&R inventory. Every 5P81:451322.002-00 unit includes a 1-year functional replacement warranty and full QA bench clearance.
