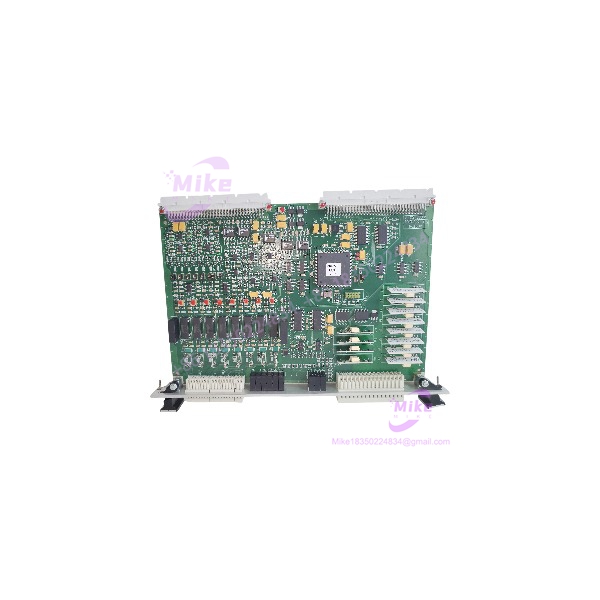

Alstom PIB102A 3BEB0180A | Power Interface Board, New Surplus
Architect’s Product Breakdown
The Alstom PIB102A, designated by part number 3BEB0180A, operates as a critical power interface and management node within heavy-duty industrial and railway propulsion architectures. Sitting directly between raw auxiliary feeds and sensitive logic controllers, this module regulates distribution thresholds while isolating downstream processing units from transient spikes. Its integration footprint demands strict adherence to cabinet thermal limits and proper grounding to prevent common-mode noise corruption across the backplane bus.
Deploying this hardware requires careful verification of legacy hardware revisions, particularly when replacing older Converteam-branded iterations. Firmware discrepancies or mismatched jumper configurations on the board can trigger immediate communication timeouts with the main rack. Engineers must evaluate current load profiles before installation, as running near upper thermal boundaries without adequate chassis ventilation significantly accelerates electrolytic capacitor aging.
PIB102A 3BEB0180A
Key Technical Specifications
- Operating Voltage: Standard industrial/traction control levels
- Enclosure / Format: Printed Circuit Board (PCB) module insert
- Dimensions: Approximately 10.6 cm x 9.3 cm x 2.3 cm
- Protection Circuits: Integrated over-current and over-voltage trip thresholds
- Diagnostic Features: On-board status LEDs and fault detection handshakes
- Cooling Method: Convection-cooled via cabinet airflow
- Mounting Type: Rack-mounted card slot
- Operating Temperature: -10°C to +60°C standard industrial threshold
- Lifecycle Phase: Mature / Legacy Support via Surplus Channels
Field Engineer’s Pitfall Guide (Unique Value)
- Warning: Overlooking Hardware Revision Shifts. Swapping an older Converteam-branded variant with a newer Alstom revision without checking the hardware pin configuration can result in unpowered bus segments. I once watched a commissioning team burn 24 hours troubleshooting a phantom communication drop because a legacy revision handled local power gating differently than the replacement unit.
- Warning: Failing to Verify Conformal Coating Integrity. Units pulled from long-term storage or maritime surplus environments must be inspected for micro-cracks in the protective lacquer. High humidity combined with neglected cabinet seals will cause tracking across high-voltage traces.
- Warning: Ignoring Torque Specs on Terminal Blocks. Overtightening the plug-in terminal connectors on this module shears the internal solder joints on the PCB substrate, creating intermittent open circuits that defy standard multimeter checks.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Inspection of OEM markings, serial number integrity, and anti-static shielding verification.
- Bench Power-Up: Controlled voltage application on a dedicated test rack to monitor quiescent current draw and verify power rail stability.
- Signal & Logic Handshake: Execution of functional diagnostic routines to validate internal monitoring circuits and fault relay responses.
- Thermal Stress Sweep: Extended soak test under load to isolate intermittent semiconductor failures.
- Packaging: Sealed in moisture-barrier anti-static bags prior to dispatch.
Technical FAQ
- Can I hot-swap this module while the process is running? No. Disconnect all primary power feeds before extracting or inserting the PCB to prevent backplane bus arc damage and logic corruption.
- Is this unit compatible with older Converteam-stamped variants? Yes, the 3BEB0180A serves as a direct functional replacement for legacy iterations, provided system jumpers mirror the original setup.
- Does the module retain configuration data after a total power loss? Yes, core operational parameters and protection limits are hardwired or stored in non-volatile onboard memory configurations, requiring no battery backup.
- What is the typical condition of these units on the secondary market? Most available units are categorized as New Surplus or certified refurbished OEM stock, backed by rigorous bench testing.
