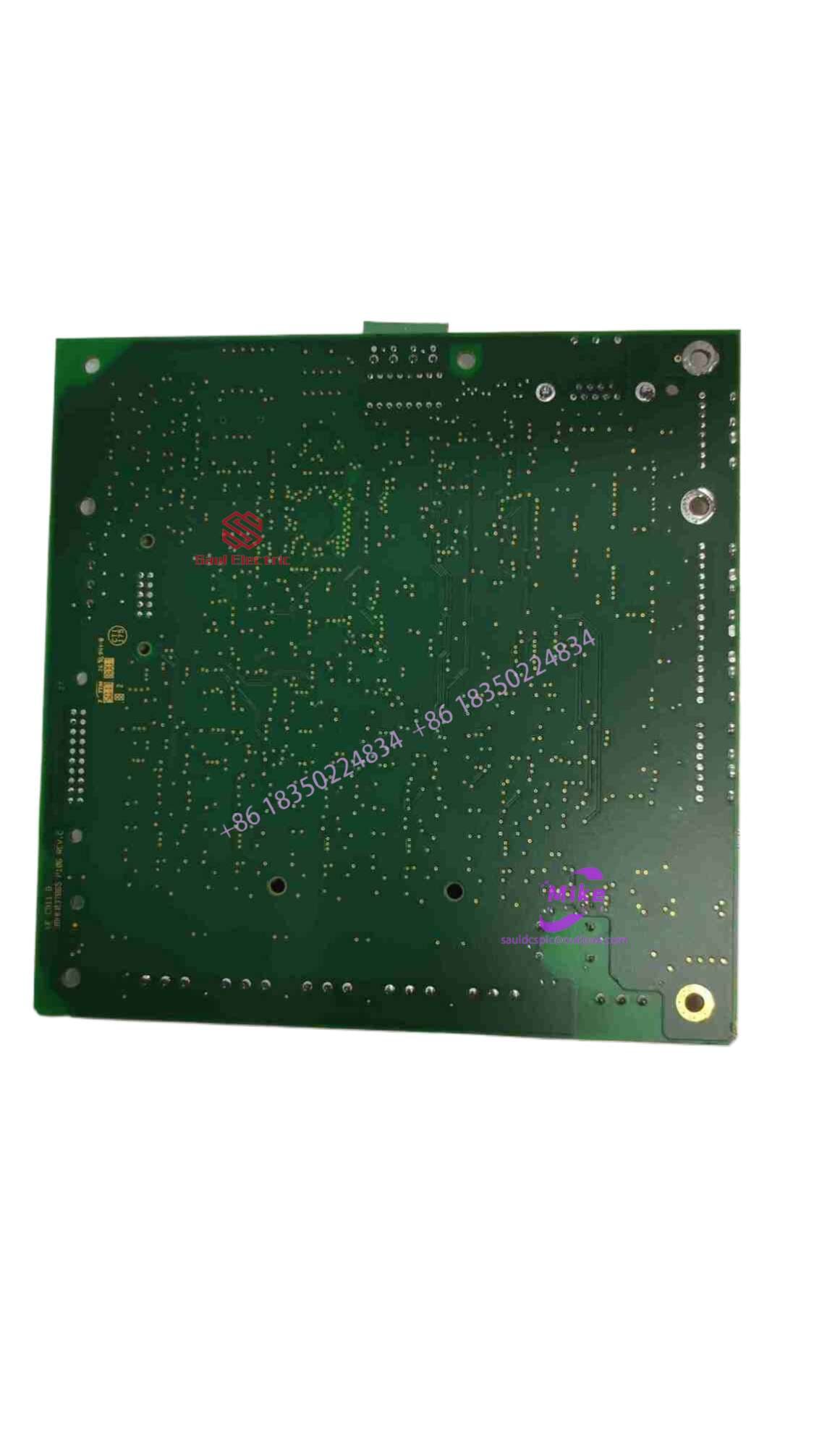

UFC911B106 3BHE037864R0106 ABB module
ABB UFC911B106 3BHE037864R0106 is a single axis motion control driver module launched by ABB. It is also used as a control device module in the AC 800PEC series DCS control system and has applications in industrial automation and process control fields.
UFC911B106 3BHE037864R0106 ABB module
In terms of core parameters, the power supply voltage range is 18VDC to 160VDC, the low-voltage version is 18VDC to 48VDC, the maximum continuous current is 50A, and the low-voltage version is 3A. The current loop control frequency is 16kHz, and the position and speed loop control frequency is 4kHz. Built in brake drive circuit, can be directly connected to 24V brake, and provides motor temperature probe interface for real-time monitoring of motor temperature.
In terms of control functions, it supports three operating modes: position control mode, speed control mode, and current torque control mode. The operation modes include network command mode, pulse direction mode, positive and negative 10V analog signal mode, PWM signal mode, and independent operation mode. The independent operation mode does not require an upper computer, and the motion program is written by MotionStudio software and downloaded to the driver, which can be triggered by the driver’s I/O or internal timer to automatically run.
In terms of communication and interface, it supports three communication methods: RS232, RS485, and CAN bus, all of which can achieve multi driver networking control. Parameter adjustment, online monitoring, and real-time control can be performed through the MotionStudio upper computer software, while providing the upper level maneuvering state library MotionLib and instruction set for secondary development. Integrated with simple PLC functions, equipped with 8 optoelectronic isolated digital inputs, 3 optoelectronic isolated digital outputs, and 1 positive and negative 10V analog input. The low-voltage version has 3 digital inputs, 2 open collector electrode digital outputs, and 1 analog input.
In terms of protection functions, it has multiple protection mechanisms such as temperature protection, overcurrent protection, overvoltage protection, undervoltage protection, and I2t current limitation, with high reliability. Simultaneously supporting the functions of saving control parameters and alarm history records.
This module can also be extended to a multi axis control scheme, supporting up to 1 to 8 axis stepper motors or servo motors, or any combination of both. It uses an IMC ASIC chip to achieve multi axis servo positioning and same motion but different motion control based on DDA principle. It has a built-in MCCL motion control function library and is paired with a real-time multitasking operating system to form an embedded motion control platform.
Typical applications include crane lifting control, automated assembly line conveyor belt drive, motion control of small precision equipment, cost-effective alternative solutions for imported products, and process control circuits in ABB AC 800PEC DCS systems, including analog output, PID control, circuit fault monitoring, and other functions.
In summary, UFC911B106 3BHE037864R0106 is a single axis motion control driver and DCS control module launched by ABB. It features a wide voltage input of 18 to 160V, 50A high current drive, 16kHz current loop, multi communication bus networking, and independent operation capability as its core, suitable for single or multi axis servo stepper control and process automation scenarios.
