UFC765AE102 3BHE003604R0102 is a rectifier bridge/power unit dedicated protection control board produced by ABB, belonging to the UFC765AE series (there are also models such as B101 in the same series). This module is not a universal I/O module, but a protection and control board specifically designed for power units of high-voltage inverters and rectification devices.

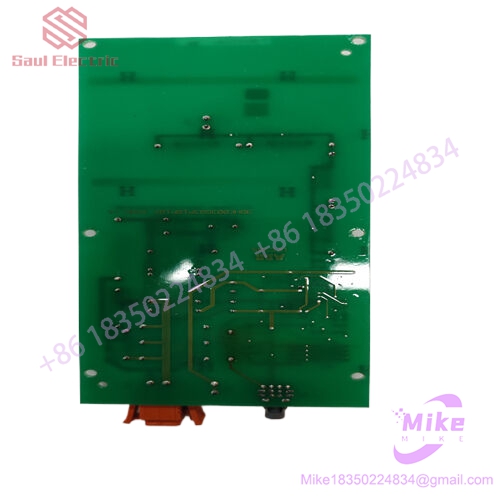

UFC765AE102 3BHE003604R0102 ABB Circuit Board
[Product Positioning]
This module is the core component of ABB high-voltage frequency converters (such as ACS5000, ACS6000 series) and UNITOL excitation system power units, mainly responsible for the protection and control functions of rectifier bridges/power units, and also has thyristor triggering and driving capabilities.
[Core Function]
Thyristor triggering and driving: providing precise triggering pulses for rectifier bridge thyristors, suitable for multiphase rectification topologies.
Overcurrent/Short Circuit Protection: Quickly detect overcurrent and short circuit faults, immediately block triggering pulses to prevent damage to power devices.
Overvoltage/undervoltage protection: Real time monitoring of DC bus and AC side voltage, triggering protection action in case of abnormalities.
Overheating protection: Integrated temperature detection function, automatically locks output when overheating occurs.
Surge/spike suppression: Absorbs commutation overvoltage and protects power semiconductor components.
Status monitoring and feedback: Output fault signals (overcurrent, overheating, triggering anomalies, etc.) for upper level controller to diagnose faults.
Electrical and Environmental Parameters
Working temperature: -40 ℃~+80 ℃
Protection level: IP65 (can resist the invasion of dust and water, adapt to harsh industrial environments)
Dimensions: Approximately 150mm x 100mm x 50mm
Weight: Approximately 250g
Input voltage: 220V (typical), output voltage 24V
Communication interface: RS485, supports Modbus RTU protocol, and also supports Profibus DP communication
Digital input: 16 channels (DI)
Digital output: 8 channels (DO)
Analog output: 4 channels (AO1~AO4), 0/4~20mA configurable, factory default 4~20mA, negative electrode and ground isolation, 16 bit resolution, maximum working resistance 750 Ω
Supports logical value (boolean) processing, byte values (byte, 0~255), numeric values (num, integers -8388607~8388608), double digits (dnum), string and other data types
Built in 24VDC optocoupler, open collector driver, supports PNP or NPN
The digital outputs DO1~DO4 are floating double throw contacts, with a maximum contact rated load of 30VDC/1A
Typical application scenarios
ABB High Voltage Inverter (ACS5000, ACS6000) Power Unit
Industrial rectifier device
DC drive system
Generator excitation system (static excitation cabinet)
High power UPS
SVG dynamic reactive power compensation device
[Associated Model]
Same series: 3BHE003604R0101 (UFC765AE101), 3BHE003605R0102
Similar functions: 3BHB021400R0002 (thyristor driver board), 3BHE039770R0102 (PPD539A102 interface board)
[Precautions for use]
This board is a specialized power unit accessory that needs to be matched with the corresponding inverter/rectifier cabinet model and cannot be replaced universally. When purchasing or replacing, it is necessary to verify the equipment model, power unit specifications, and order number (3BHE003604R0102). When troubleshooting, priority should be given to checking the triggering pulse, temperature sensor, power supply voltage, and protection circuit wiring.
