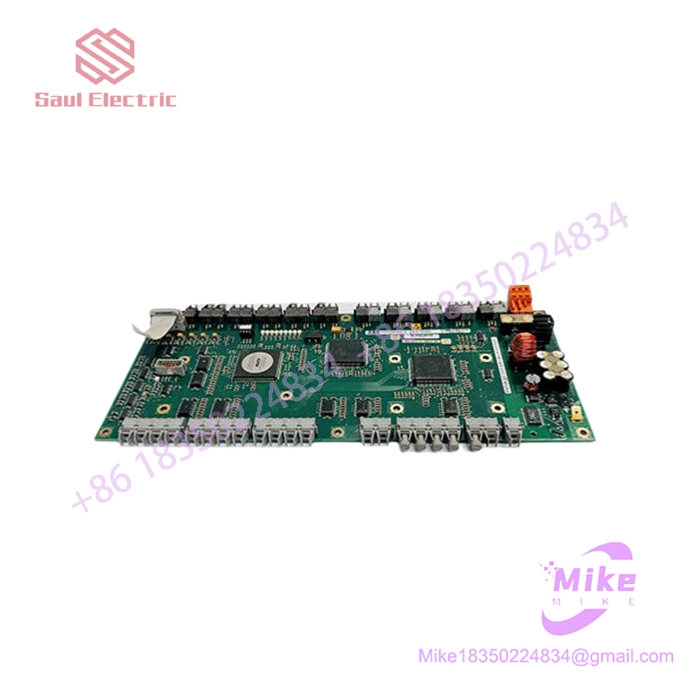

UFC718AE101 HIEE300936R0101 ABB Module
Brand: ABB
Product Series: AC 800PEC / UNITROL / Power Electronics Control Series
Model: UFC718AE101 (Part Number: HIEE300936R0101)
Product Type: High-Speed Processor and Communication Control Board
UFC718AE101 HIEE300936R0101 ABB Module
Technical Parameters:
Processing Core: High-performance embedded digital processing architecture optimized for microsecond-level execution of rapid control loops and complex power electronics regulation.
Communication Interfaces: Integrated high-speed fiber-optic communication channels ensuring ultra-low latency, deterministic data transfer, and absolute immunity to extreme electromagnetic interference (EMI).
Signal Processing Matrix: Advanced onboard digital logic configured for precise synchronization, fast signal routing, and real-time tracking of critical system control parameters.
Galvanic Isolation: Built-in high-level electrical isolation barriers across all signal paths to protect sensitive central processing components from severe field-side voltage transients and ground loops.
Onboard Diagnostics: Front-panel integrated diagnostic status LEDs providing real-time visual tracking of board power health, active optical network links, and localized module fault alerts.
Circuit Resilience: High-density multi-layer printed circuit board layout treated with a specialized industrial-grade conformal coating to safeguard electronics against dust, moisture, and chemical vapor degradation.
Mechanical Configuration: Compact slide-in rack module architecture designed for secure, vibration-resistant installation within standardized electrical control cubicles and sub-racks.
Industrial Sectors:
Power Generation Utilities (Hydroelectric, Thermal, and Gas Power Plants), Medium and High Voltage Motor Drive Systems, High-Voltage Direct Current (HVDC) Power Transmission, Heavy Metallurgical and Steel Rolling Mills, and Large Marine Propulsion Systems.
Application Scenarios:
1. Generator Excitation Automation Hub: Installed inside ABB UNITROL excitation cubicles to run core Automatic Voltage Regulator (AVR) sub-routines, processing real-time feedback loops to manage the field current of utility synchronous machines.
2. High-Power Frequency Converter Coordination: Deployed within static frequency converters (SFC) or medium-voltage drive panels to serve as a primary control card, calculating firing configurations and synchronizing thyristor or IGBT gating sequences during heavy motor soft-starts.
3. Power Grid Compensation and Stabilization: Integrated into Static Var Compensators (SVC) and STATCOM cabinets to process rapid phase and voltage tracking loops, allowing instantaneous reactive power compensation during dynamic grid load variations.
4. Marine Propulsion Grid Management: Utilized inside the main electric propulsion and auxiliary power cabinets of large industrial vessels to process high-speed load balancing metrics and prevent system trips caused by high thruster demands.
