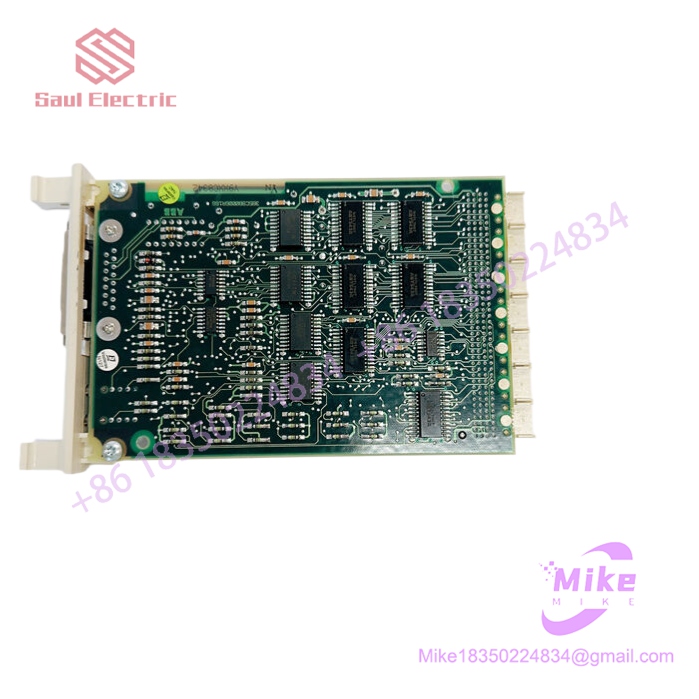

CS513 3BSE000435R1 ABB CARD

Brand: ABB

Product Series: Advant Master Process Control System / Advant Controller 400 Series (AC410, AC450, AC460)

Model: CS513 (Part Number: 3BSE000435R1)

Product Type: MasterBus 300 / MasterBus 300E IEEE 802.3 LAN Communication Module

CS513 3BSE000435R1 ABB CARD

Technical Parameters:

System Architecture: Dedicated LAN communication board designed for insertion into Advant Controller sub-racks to enable high-speed controller-to-controller and controller-to-HMI communications.

Network Protocol: Standard IEEE 802.3 Ethernet protocol operating MasterBus 300 and MasterBus 300E real-time control network protocols.

Interface & Physical Connections: Sub-rack backplane interface with Ethernet network connectivity for local area control system communication.

Data Throughput & Memory Handling: High-speed real-time data exchange supporting continuous transmission of process images, alarms, trend logs, and control commands.

System Power Consumption: Sourced via the sub-rack backplane supply (5 V DC / 24 V DC auxiliary input) with an estimated total power dissipation of 8 W.

Physical Dimensions & Weight: Compact form factor measuring approximately 234 mm (D) x 108 mm (W) x 18 mm (H) with a net weight of approximately 0.2 kg.

Redundancy Capabilities: Supports dual-board redundant configuration setups for high-availability control architectures with automated network takeover.

Operating Thermal Range: Industrial-grade operating performance rated across wide panel thermal ranges (-20°C to +60°C).

Industrial Sectors:

Electric Power Generation and Utilities, Chemical and Petrochemical Processing, Oil and Gas Offshore/Onshore Refining, Heavy Metallurgy and Steel Production, Pulp and Paper Manufacturing, and Large Distributed Automation Plants.

Application Scenarios:

1. High-Speed Control Network Interfacing: Installed inside Advant Controller racks (AC410/AC450) to link field controllers across MasterBus 300/300E networks for deterministic peer-to-peer data exchange.

2. Operator Station Telemetry & HMI Integration: Deployed in central control rooms to stream real-time process data, alarm logs, and dynamic trend curves from controllers to MasterView operator stations.

3. Redundant MasterBus Communication Links: Configured in dual-module backup arrangements inside safety-critical process sub-racks to ensure uninterrupted communication loops in case of primary link failure.

4. DCS Cabinet Modernization & Retrofit: Utilized during plant control system upgrades as an essential communication interface card to connect legacy controller racks with modern plant-wide automation networks.
