ABB YPQ201A YT204001-KA/5 | DCS System Control Board In-Stock
Dynamic Product Introduction
Torn-up terminal blocks, burnt trace logic, and sudden rack-communication drops are standard nightmare fare when running legacy control racks past their intended service life. The ABB YPQ201A YT204001-KA/5 functions as a vital central command component in legacy ABB process control setups. It handles high-density data synchronization between field I/O subsystems and higher-level supervisory networks, maintaining deterministic timing across critical loops.
When retrofitting or keeping older infrastructure alive, sourcing a genuine ABB YPQ201A YT204001-KA/5 unit eliminates the costly engineering overhead of immediate, full-system rip-and-replace migrations. Equipped with ruggedized onboard line drivers and fast bus execution circuits, this board insulates the main system logic from external line electrical noise. Replacing a degraded board with a verified unit immediately restores bus stability and prevents random controller halt events.

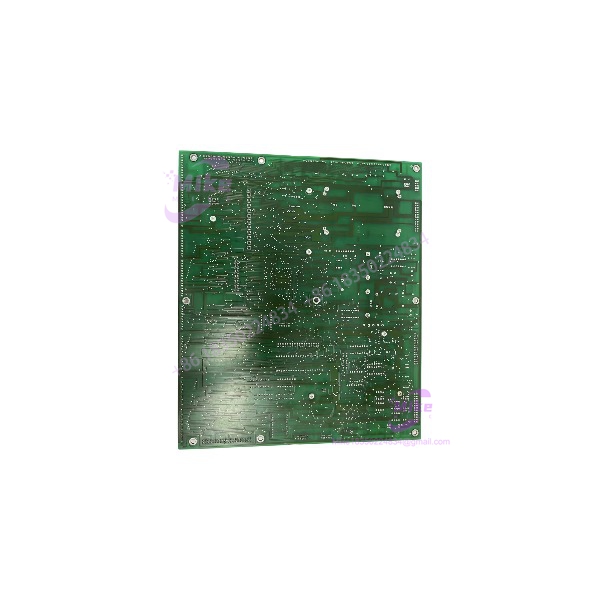

YPQ201A YT204001-KA/5
Key Technical Specifications
- Model Designation: YPQ201A
- Part Number: YT204001-KA/5
- Manufacturer: ABB
- Functional Category: Main Logic Processor / System Control Board
- Nominal Operating Voltage: 24 VDC (±10% input tolerance)
- Communication Interfaces: RS-485 serial communications link
- Execution Timing: ~1 ms logic processing cycle
- Board Construction: FR-4 glass-reinforced epoxy multi-layer PCB
- Enclosure Protection Rating: IP20
- Approximate Weight: 0.1 kg to 0.42 kg (bare board depending on bracket hardware)
- Operating Temperature Range: 0°C to +55°C (32°F to 131°F)
Global Sourcing & Live-Test SOP (Transparency Core)
Sourcing legacy control components like the ABB YPQ201A YT204001-KA/5 requires systematic quality control to avoid inheriting someone else’s field failure. Every board moving through our inventory passes a rigid five-stage diagnostic verification:
- Inbound Verification: Incoming stock undergoes serial matching against ABB factory records to filter out counterfeit board revisions. Visual inspections focus on solder joint integrity, thermal stress discoloration around voltage regulators, and edge connector plating thickness.
- Live Simulation: We insert the ABB YPQ201A YT204001-KA/5 into an authentic ABB test rack to verify backplane bus communications and power-rail startup sequences.
- Diagnostics: Serial interfaces undergo packet-loss checks using protocol analyzers over sustained RS-485 transmissions. The unit is subjected to an extended 24-hour thermal run at elevated operating temperatures inside a burn-in chamber while monitoring voltage output rails.
- Final Prep: Firmware revs are logged, gold edge connectors are treated with electrical contact restorer, and the board is sealed in anti-static ESD shielding prior to transit packing.
The Field Engineer’s Pitfall Guide
- ❗ Sub-Revision Code Incompatibilities: —though the board designation reads ABB YPQ201A YT204001-KA/5, pay close attention to the
/5suffix. Installing a/3or/4variant into a rack engineered specifically for/5timing can result in intermittent rack sync failures or unresolvable bus error codes during power-on self-tests. - ❗ Backplane Connector Pin Misalignment: Slide the board into the card cage guide rails carefully. Forcing the board into place without aligning the rear edge-connector pins properly will bend or snap backplane receptacle fingers, forcing a full rack teardown.
- ❗ Missing Ground Strap Connections: Failing to bond the mounting faceplate’s ground wire to the chassis earth ground opens onboard RS-485 transceiver chips to high-voltage field spikes. I’ve seen technicians lose three consecutive control cards in a week simply because an electrician left the rack earth lead dangling after a overhaul.
Intent-Driven FAQ
Will swapping out an ABB YPQ201A YT204001-KA/5 card wipe the system’s runtime program?
If application memory is stored in volatile RAM backed by an onboard battery on this specific card, pulling power without a secondary backup supply or saved EEPROM chip will clear user logic. Always back up controller parameters to your engineering station before removing the module.
Is the ABB YPQ201A YT204001-KA/5 board hot-swappable in a running rack?
No, hot-swapping this board while the backplane power supply is live is not recommended. Pulling live edge connectors can create voltage transients that damage onboard logic gates or cause upstream controller fault stops. Power down the rack segment before extraction.
How can I identify if my current ABB YPQ201A YT204001-KA/5 failure is due to serial interface damage?
A dead RS-485 interface typically presents as a continuous “Bus Fault” or “Node Offline” status while the main CPU power LED remains steady green. Measuring differential voltage across the RS-485 A/B lines with an oscilloscope can reveal blown transceiver chips caused by ground loops.
Can I replace a YT204001-KA/5 with a generic control board?
No, the pinouts, internal bus timing, and firm-coded protocol routines of the ABB YPQ201A YT204001-KA/5 are proprietary. Using third-party generic hardware is impossible without completely replacing the parent controller system.
What guarantee comes with spare ABB YPQ201A YT204001-KA/5 units?
Verified replacement boards carry a standard 1-year replacement warranty. If the ABB YPQ201A YT204001-KA/5 develops functional defects or communication dropouts during normal operational use within 12 months, it is replaced directly from tested surplus stock.
