Description

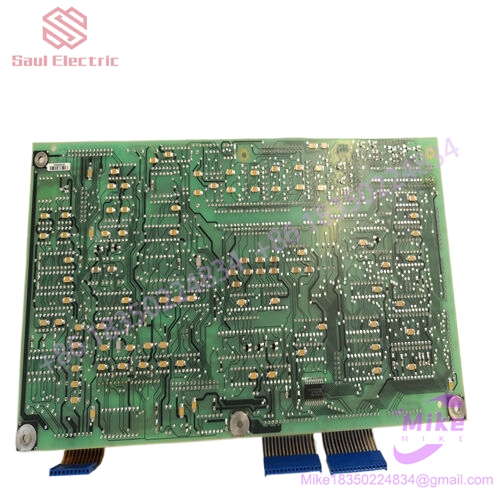

ABB YPQ101E YT204001-FS Control Board
ABB YPQ101E YT204001-FS is a compact PLC programmable controller suite in the ABB AC500eCo series, consisting of YPQ101E CPU motherboard and YT204001-FS communication module. Its core positioning is a logic control and data communication node for small and medium-sized automation scenarios, widely deployed in local control cabinets and remote monitoring stations in industries such as power, metallurgy, building materials, and municipal services.
core positioning
ABB YPQ101E YT204001-FS Control Board
The AC500eCo series compact PLC controller integrates logic operation, I/O acquisition, and remote communication, making it suitable for replacing relay logic to achieve small-scale process control and equipment interlocking. It can also be used as a remote I/O slave station or independent control unit for the AC500 system.
core functionality
In terms of CPU motherboard YPQ101E, it provides digital input/output and analog input/output channels, supports IEC 61131-3 standard programming languages such as ladder diagram, function block diagram, structured text, etc. It has multiple sets of parameter formulas built-in and supports online monitoring and modification. The program capacity and data registers meet the requirements of small and medium-sized projects, with short scanning cycles, suitable for fast logical response scenarios.
In terms of communication module YT204001-FS, it belongs to the modem board or modem board, with functions equivalent to YPC104B communication board, supporting remote automation control and data transmission. The communication interface supports Modbus RTU and Modbus ASCII protocols, enabling serial data exchange between the controller and the upper computer SCADA, DCS, or other devices. Suitable for situations where it is necessary to upload the status of on-site equipment to a centralized monitoring system or receive remote instructions.
In terms of system features, it supports up to 6 independent parameter groups with password protection, and key logic can be programmed into user programs through graphical tools to achieve automatic interlocking and equipment interlocking. Modules are interconnected through dedicated connectors, plug and play without the need for additional configuration. The power-off hold function ensures that operational data and recipe parameters are not lost.
In terms of hardware, YPQ101E has a compact appearance and supports DIN rail installation. It operates at temperatures ranging from negative 25 degrees Celsius to positive 70 degrees Celsius, with a wide temperature range of negative 40 degrees Celsius to positive 85 degrees Celsius. The protection level is IP20. The YT204001-FS communication module is also installed on a DIN rail and used in conjunction with the CPU motherboard. Low overall power consumption, suitable for deployment in control cabinets with limited space.
Application industry
The local logic control and remote signal uploading of substations and distribution networks under the State Grid Southern Power Grid in the power utility industry. In the petroleum and petrochemical industry, on-site control and remote monitoring of valve chambers in the refining plants and oilfield pumping stations of PetroChina, Sinopec, and CNOOC. The mining and metallurgical industry involves interlocking control of crushing stations and belt conveyors for non-ferrous and ferrous metal mines. Control of auxiliary equipment for large cement groups such as Conch China Resources in the cement and building materials industry. Local control of medium voltage motors in the paper industry, pulp mills, and paper mills. Local signal acquisition and remote communication for municipal pump stations and water pipeline networks in the municipal engineering industry. In the renewable energy industry, on-site control and station monitoring of box transformers for wind farms and photovoltaic power plants.
Usage scenario
Firstly, the pump station and valves are locally controlled. Deploy YPQ101E in municipal pump stations or water valve wells to collect liquid level, pressure, and valve opening and closing status, and upload them to SCADA in the central control room via Modbus RTU through YT204001-FS, replacing traditional hard wiring to reduce wiring.
Secondly, the belt conveyor is interlocked. On the conveyor line of mines or cement plants, YPQ101E realizes the start stop interlocking and fault emergency stop logic of multiple motors, and YT204001-FS uploads the operating status and fault signals to the plant level DCS.
Thirdly, interlocking of small substation equipment. In substations of 110kV and below, as the local control unit of the switchgear, the status of the knife switch and circuit breaker is collected, and the anti misoperation locking logic is executed. The communication module uploads the signal to the remote control device in the station.
Fourthly, remote monitoring of pump units in refineries. In the unmanned oil pump room, YPQ101E controls the start stop and valve adjustment of the pump group, while YT204001-FS uploads flow, pressure, current and other data to the central control room through Modbus RTU.
Fifth, independent logic controllers replace relays. Replacing traditional relay logic with YPQ101E to achieve equipment interlocking and sequential control in small and medium-sized production lines allows for flexible programming and online modification, significantly reducing maintenance costs.
Sixth, on-site control of wind, electric, and photovoltaic box transformers. Deploy in box type substations on the wind turbine and inverter sides, collect power generation and equipment status, and upload them to the centralized control center through communication modules to meet the requirements of decentralized layout of new energy stations.
one-sentence summary
ABB YPQ101E YT204001-FS is a combination set of AC500eCo series compact PLC controller and Modbus RTU communication module, with a miniaturized CPU, remote serial communication, and protocol programming as the core. It can cover two types of needs: local logic control and remote data upload without intermediate modules. It is widely used in industries such as power utilities, petroleum and petrochemical, mining and metallurgy, cement and building materials, papermaking, municipal water affairs, and renewable energy, covering core scenarios such as pump station valve control, conveyor interlocking, substation equipment interlocking, refining pump group monitoring, relay logic substitution, and local control of new energy stations.
