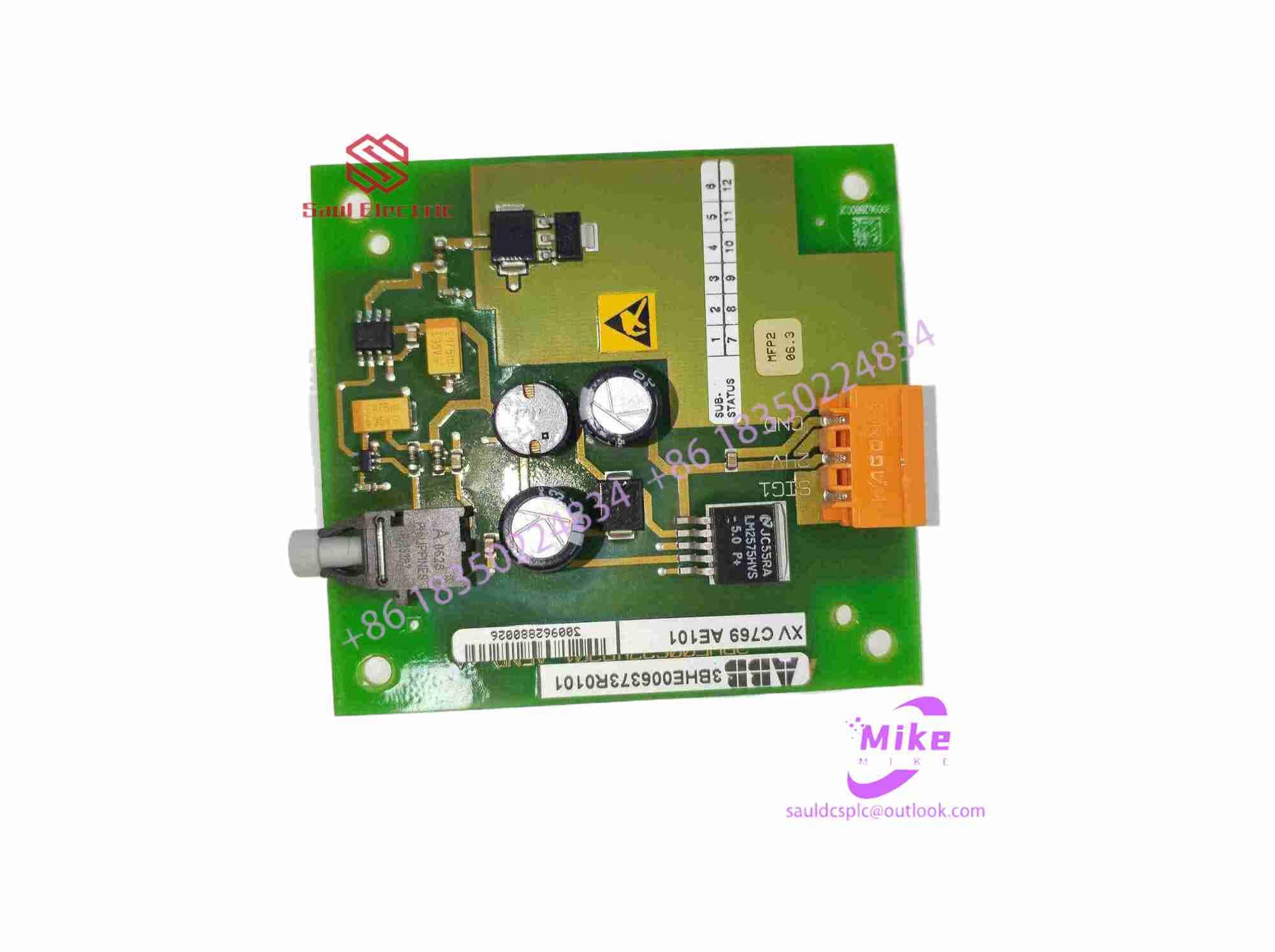

ABB XVC769AE101 3BHE006373R0101 Analog Input Terminal Board
ABB XVC769AE101 3BHE006373R0101 is an 8-channel analog input terminal board launched by ABB. It is also used as an excitation regulation device in ABB 800xA DCS system and belongs to the core signal acquisition and control module in process automation and power systems.
ABB XVC769AE101 3BHE006373R0101 Analog Input Terminal Board
In terms of core parameters, the module provides 8 analog input channels, supports 0 to 10V voltage signal input, is compatible with the HART protocol, and can achieve bidirectional communication with smart sensors. Adopting 16 bit high-resolution A/D conversion, with an accuracy of plus or minus 0.1% and a response time of 10 microseconds, it can quickly capture changes in sensor signals. The working temperature range is from minus 20 degrees Celsius to plus 70 degrees Celsius, suitable for most industrial site environments. The protection level is IP20, which can effectively prevent dust from entering.
In terms of physical specifications, the dimensions are approximately 120mm by 100mm by 40mm, and the weight is about 0.2kg. It adopts a compact design, making it easy to install and deploy inside the control cabinet. The wiring method is screw terminal connection, supporting hot swappable replacement, and module replacement can be completed without cutting off the system power supply.
In terms of system integration, this module is deeply compatible with ABB IRC5 controller and 800xA DCS system, and can be directly connected to the system I/O station for use. As an excitation regulation device, it supports multiple control modes such as automatic constant machine terminal voltage PID regulation, manual constant excitation current PID regulation, constant power factor operation, and constant reactive power operation. It has functions such as reactive power adjustment, power-off parameter maintenance, fault recording, event recording, and system self-test. The adjustment coefficient can be adjusted from 0 to 15%, with a step difference of 0.1%. Simultaneously supporting RS485 communication interface, facilitating data exchange with the upper computer and other devices.
Typical applications cover synchronous generator excitation control in the field of power generation, analog signal acquisition in industrial automation systems, process parameter monitoring in process industries, as well as scenarios with clear requirements for signal accuracy and environmental adaptability such as petrochemicals, metallurgy, and water treatment.
One sentence summary: XVC769AE101 3BHE006373R0101 is ABB’s 8-channel 0 to 10V high-precision analog input terminal board and excitation regulation module. With a core of 0.1% accuracy, 10 microsecond response, -20 to 70 degrees Celsius wide temperature adaptation, and 800xA/IRC5 dual platform compatibility, it is a mature solution that balances accuracy and reliability in power generation excitation control and industrial analog data acquisition.
