ABB PP877K 3BSE069274
ABB PP877K 3BSE069274R1 Panel 800 Version 6 Key Operation Panel HMI
[Product Positioning]
PP877K 3BSE069274R1 is a 10.4-inch key panel in the ABB Panel 800 Version 6 series, which is a standard human-machine interface (HMI) terminal device. Unlike the PP877 touch screen of the same series, the PP877K adopts a physical button operation method, designed specifically for industrial site environments that require reliable button input, glove operation, or dust/humidity that are not suitable for touch screens.
Display and Interaction
Equipped with a 10.4-inch TFT-LCD color LCD display with a resolution of 640 × 480 pixels (4:3), supporting 64K color display, it can present clear graphics, animations, trend charts, and text information. The operation method is a physical button panel, where the operator interacts with the function keys and input buttons on the panel. It supports glove wearing operation and is not affected by environmental factors such as dust, water stains, and oil stains. It is recommended to use the RX877K Key Cover on the front panel to protect the key area from accidental touch and contamination.

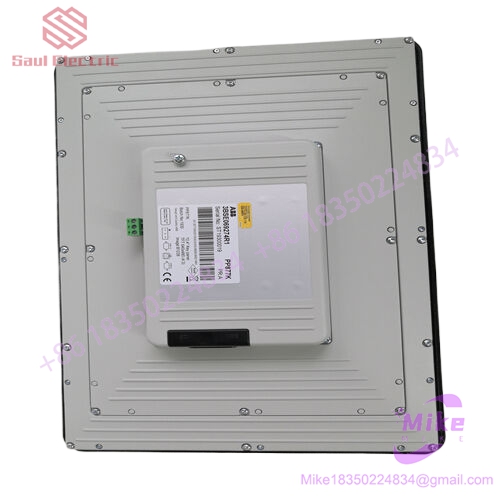

ABB PP877K 3BSE069274
Product positioning and series ownership
Belonging to the Panel 800 Version 6 standard operating panel series, this series includes button panels PP874K and PP877K, as well as touch panels PP871, PP874, and PP877. The PP877K is designed for applications in extreme environmental temperature ranges and is the button version of the PP877 touch screen. Its functionality and communication capabilities are the same, with only the interaction method being different.
[Communication Interface]
Equipped with Ethernet RJ45 port and serial communication interface (RS-232/RS-485), supporting mainstream industrial communication protocols such as Modbus TCP/RTU, PROFIBUS DP, OPC, etc., it can seamlessly integrate with AC800M series controllers (PM860, PM891, PM902F, etc.), SD series controllers (SPC800 series), and third-party SCADA systems.
[Physical Specifications]
Front panel dimensions: approximately 275 mm in width, 215 mm in height, and 52 mm in depth. The installation opening size is approximately 259 × 201 mm, and the panel installation thickness is 2-12 mm. The net weight is approximately 2.0 kg. The front panel protection level is IP65 (NEMA 4X when installed), which can effectively prevent dust and water, and adapt to flushing environments. Rear protection level IP20. Adopting DIN rail installation method. The working temperature range is -20 ° C to+60 ° C, and the storage temperature is -40 ° C to+85 ° C.
Power Supply and Certification
The working power supply is 24V DC (18-30V DC). Passed certifications such as CE, cULus, UL 508, RCM, RoHS, etc. HS code 84714100. Compliant with IEC 61000 series electromagnetic compatibility standards and ISA S71.04 G1/G3 environmental grade requirements.
Programming and Configuration
Use ABB Panel Builder 800 (formerly 800xA Panel Builder) software for screen configuration and program download, seamlessly integrated with ABB 800xA system (Control Builder M/Compact Control Builder), supporting unified project management. Support functions such as alarm management, real-time trend charts, recipe management, and user permission grading. Built in web server, supports remote monitoring. Equipped with an SD card slot for easy application backup and recovery.
Typical application areas
Widely used in industrial automation scenarios that require local human-machine interaction, such as oil and gas, thermal power generation and new energy, chemical process control, water/wastewater treatment, pulp and paper, cement and building materials, metallurgy, district heating, mining, food and beverage, pharmaceuticals, etc., it is particularly suitable for on-site operation positions with high dust, high humidity, glove wearing operation, or concerns about the reliability of touch screens. It is usually used in conjunction with AC800M series controllers and SD series controllers.
