ABB PP845 3BSE042235R1 Operator Panel Touch Screen Operator Panel
[Product Positioning]
PP845 3BSE042235R1 is a 10.4-inch color touch screen operator panel in the ABB Panel 800 series. It is a human-machine interface (HMI) terminal device of the ABB 800xA automation system, used for real-time interaction between operators and control systems such as AC800M and SD series (SPC800), achieving process monitoring, parameter setting, alarm management, and control operations.

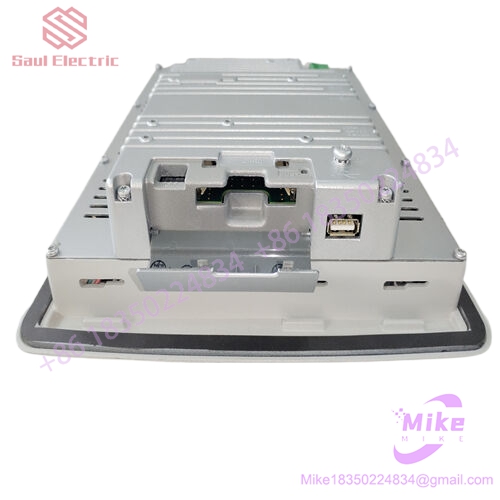

ABB PP845 3BSE042235R1 Operator Panel Touch Screen
Display and Interaction
The screen size is 10.4-inch TFT-LCD color LCD display screen, with a resolution of 800 × 600 pixels, supporting 64K color display, and can present clear graphics, animations, and text information. Adopting resistive touch screen technology, supporting finger and glove operation. High brightness and high contrast design, suitable for industrial site environments under various lighting conditions. The front panel seal has a protection level of IP66, which can effectively prevent dust and water.
[Communication Interface]
Equipped with 2 RS-232C serial ports (9-pin D-sub contact, external thread, RS422/RS485）、 1 Ethernet RJ45 interface (100 Mbps), 1 USB host Type A interface (USB 1.1, maximum output current 500mA), and 1 CF flash card slot (supporting Type I and Type II compact flash memory for application storage, with a capacity of 12MB including fonts). Supports mainstream industrial communication protocols such as Modbus RTU/TCP, PROFIBUS DP, etc., and can seamlessly integrate with AC800M series controllers (PM860, PM891, PM902F, etc.), SD series controllers (SPC800 series), and other field devices. It also supports OPC interconnection with third-party SCADA software.
[Physical Specifications]
Front panel dimensions: width 302 mm x height 228 mm x depth 6 mm, installation depth 58 mm (including gap 158 mm). Net weight is approximately 2.1 kg (including packaging of approximately 2.7 kg). Rear panel seal IP20. The front panel is made of powder coated aluminum alloy and supports 1 million finger touch operations. Optional RX845 touch protection cover (exchange part number EXC 3BSE042235R2) to prevent accidental contact and dust intrusion. Adopting DIN rail installation method.
Power Supply and Clock
The working power supply is+24V DC (20-30V DC), with a 3-pin socket connection block that complies with IEC 60950 and IEC 61558-2-4 standards, and is a Class II power supply. Built in real-time clock, equipped with CR2450 battery (minimum service life of 3 years), clock accuracy ± 20 PPM (1 minute/month at 25 ° C), temperature coefficient -0.034 ± 0.006 ppm/° C.
Environment and Certification
Working temperature: Vertical installation 0 ° C to+50 ° C, horizontal installation 0 ° C to+40 ° C. Storage temperature -20 ° C to+70 ° C. Relative humidity 5% -85% non condensing. Certified by CE, cULus, UL 1604 Class I Div 2, UL 508, etc. Compliant with IEC 61000-6-4 emissions and IEC 61000-6 immunity standards. HS code 84714100. Origin Germany.
[Functional Features]
Support alarm management (up to 50 four line alarm messages, with a maximum of 32 characters per line), real-time trend charts, recipe management, user permission grading, and other functions. Supports 10 menu languages and related character sets. Built in visualization function, capable of displaying Ticker text, bar charts, I/O status switching, and more. Equipped with 6 standard function keys and 4 additional function input buttons, supporting direct input into program code. Screen configuration and program download can be performed through ABB 800xA system software (Control Builder M/Compact Control Builder).
Typical application areas
Widely used in industrial automation scenarios that require local human-machine interaction, such as packaging machinery, electronic manufacturing equipment, special machines, controller construction, textile machinery, machine tool manufacturing, installation systems, surface mount machines, electrical/electronic industries, assembly machines, automotive production lines, palletizing machines, water/wastewater treatment, general mechanical engineering, food and beverage industries, etc. It is usually used in conjunction with AC800M series controllers (PM860, PM891, PM902F, etc.) and SD series controllers.
