Description
PE1315A (material number 5FSE707630-7) is an optical isolated pulse amplifier module used in ABB Advance OCS (open control system) and Legacy MasterPiece 200 systems. Its core function is to electrically isolate, divide, and amplify high-speed pulse signals from field devices such as encoders, pulse generators, and speed probes, converting them into clean digital signals recognizable by the controller.

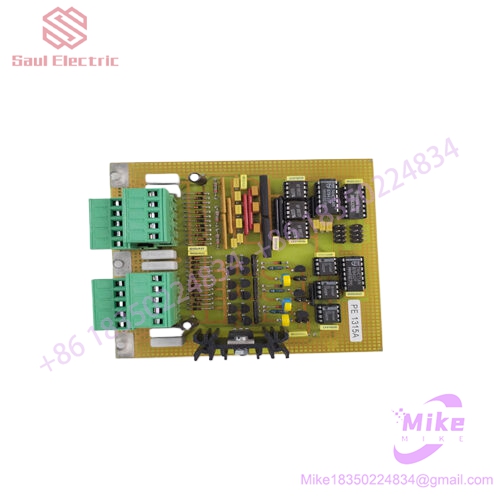

ABB PE1315A Module Pulse amplifier
core positioning
PE1315A itself does not execute control algorithms and does not collect process variables. It is a signal conditioning module installed on a DIN rail or control cabinet panel, serving as a bridge between the on-site pulse source and the upper controller (such as AC400, AC410, AC450 processors). Its core value lies in three things: firstly, cutting off the impact of on-site grounding circuit and common mode interference on the controller through photoelectric isolation; Secondly, shape the on-site pulses with varying amplitudes and waveform distortions into standard square waves; Thirdly, provide sufficient driving current to drive subsequent circuits.
Channel configuration
The module provides three independent channels: A channel, B channel, and Strobe (gating) channel. A/B channels are usually connected to the orthogonal pulse pairs of incremental encoders for speed measurement and position counting; The Strobe channel is used to receive the zero reference pulse from the encoder and achieve absolute position calibration. The three channels are independent of each other and have optical isolation capabilities, which can simultaneously process multiple pulse signals without generating crosstalk.
Electrical Characteristics
The input voltage range is 5~24V DC, the output voltage range is 5~24V DC, and the maximum output current is about 13mA (configurable current limit). The photoelectric isolation voltage is 2500V, effectively suppressing interference caused by common mode noise and ground potential difference. The response speed is extremely fast, with a rise/fall time of less than 10 µ s, and can handle high-frequency pulse trains without losing count. Supports two input modes: complementary signal and non complementary signal, compatible with the vast majority of incremental encoders and pulse generators on the market. The module implements complete electrical isolation between the input and output sides, with overvoltage protection and surge protection.
Physical specifications
The dimensions are approximately 110mm (width) x 65mm (height) x 112mm (depth), with a net weight of about 0.24kg. It can be installed on DIN rails or panel openings. The onboard LED indicator lights display real-time power status and signal activity status. The working temperature range is -20 ° C to+70 ° C, the storage temperature is -40 ° C to+80 ° C, and the protection level meets the installation requirements inside the control cabinet. Supports hot swapping and can be replaced without interrupting pulse signal acquisition when the system is powered on.
Role in the system
PE1315A belongs to the S100 series I/O board of ABB Advant OCS and MasterPiece 200 systems, and is used in conjunction with AC400 series processors. In speed measurement and positioning applications, the raw pulses output by the encoder are isolated and amplified by PE1315A before being sent to the controller for speed calculation, position accumulation, and closed-loop adjustment. Compared to directly connecting the encoder to the controller, the optoelectronic isolation layer of PE1315A can ensure that the count does not jump or lose steps in high electrical noise environments (such as near frequency converters or high current switches).
Typical Applications
Mainly used for brownfield and new construction projects that require precise speed measurement or position counting: roll diameter calculation and tension control for paper machines and film production lines, speed feedback and flying shear positioning for steel mills, speed monitoring for gas turbines and water turbines, and various occasions that require incremental encoders to be connected to DCS/PLC systems. In these scenarios, PE1315A ensures that encoder pulses can still be accurately captured by the controller even in long-distance transmission and strong interference environments.
Material number description
5FSE707630-7 is the current main part number of PE1315A, PE1315 is the basic model identification, and PE1315B is a variant model in some regional markets (input threshold or filtering parameters may be different). When replacing, the specific version needs to be checked.
