ABB Panneau 800 PP845A 3BSE042235R2 Touchpad
3BSE042235R2 PP845A
Product Name: ABB PP845A 3BSE042235R2 Panel 800 Series 10.4-inch TFT Touch Screen Operation Panel (Redundant Type)
Brand: ABB
Series: Panel 800 V6 Standard Touch Control Panel
Product type: Industrial grade Human Machine Interface (HMI) touch screen operation panel
Core function: As the on-site operation terminal for ABB AC 800M/Advant OCS distributed control system, it provides a graphical human-computer interaction interface. The operator can start and stop the equipment, adjust parameters, monitor data, and confirm alarms through the touch screen. 3BSE042235R2 is a version of the series that supports PROFIBUS DP fieldbus redundancy. It can switch between a single bus and a redundant dual bus, automatically switching to a backup channel in case of communication link failure to ensure continuous system operation. It is suitable for occasions with high reliability requirements.

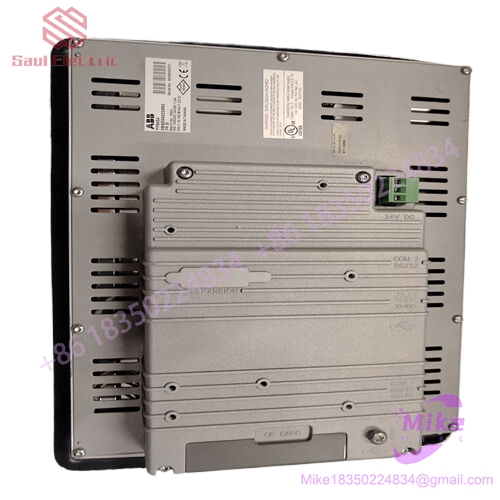

ABB Panneau 800 PP845A 3BSE042235R2 Touchpad
Display parameters:
Display size: 10.4-inch TFT-LCD
Resolution: 800 × 600 pixels
Color: 64K colors
Effective display area: 211.2mm x 158.4mm (width x height)
Backlight: LED backlight
Lifespan: Over 50000 hours in+25 ° C environment
Hardware parameters:
Processor: High performance ARM processor (specific model varies by version)
Memory: 12MB (including fonts)
Front panel dimensions: 302mm x 228mm x 6mm (width x height x depth)
Installation depth: 58mm (including a gap of 158mm)
Weight: Approximately 2.1kg
Shell material: Powder coated aluminum alloy, front panel seal IP66, rear panel IP20
Touch lifespan: 1 million finger touch operations
Electrical parameters:
Power supply voltage:+24V DC (20-30V DC), 3-pin socket connection block
Internal fuse: 3.15A, 5 × 20mm
Power consumption: standby about 3W, full load about 5W
Real time clock battery: CR2450, with a minimum lifespan of 3 years
Communication interface:
PROFIBUS DP: 9-pin Sub-D socket, compliant with Profibus DP protocol specifications, supports multiple speeds, and this model supports redundant dual bus
RS-422/RS-485: Serial port
RS-232C: 9-pin D-type socket, external thread
Ethernet: RJ45 interface
USB: Type-A host (USB 1.1, maximum output 500mA), Type-B device (USB 1.1)
CF slot: Compact Flash I/II type, used for application expansion (12MB)
Environmental parameters:
Working temperature: Vertical installation from 0 ° C to+50 ° C, horizontal installation from 0 ° C to+40 ° C
Storage temperature: -20 ° C to+70 ° C
Relative humidity: 5% -85% (non condensing)
Features
Alarm management: supports three types of event lists, process alarm lists, and system alarm lists. The alarm flashes red when it is not confirmed and displays stably after confirmation
Historical records and trend analysis: supports production data recording and backtracking
Multi language support: Supports multiple languages and character sets
Flexible configuration: Screen editing through Panel Builder software, supporting up to 300 display screens, 1500 internal alarm quantities, and 1000 historical records
Redundant design: The 3BSE042235R2 model supports PROFIBUS DP redundant links, and single bus and redundant dual bus can be converted to each other
Certification
CE certification (EN61000-6-4 emissions/EN61000-6-2 immunity)
UL/cUL certification (UL 1604 Level 1, Class 2/UL 508)
Related models in the same series:
3BSE042235R1: PP845 standard type (non redundant)
3BSE042237R1: PP836 operation panel (button type)
3BSE042238R2: PP846A Keyed Process Panel
3BSE042236R2: PP865A (higher performance version)
3BSE022255R1: Prefabricated Aluminum Alloy Profile Installation Panel
CI840/CI840A/CI801: upper level controllers that can be connected to PP845A
TB820/TB840: Supporting I/O communication terminal module
Typical application scenarios:
Manufacturing industry: production line monitoring, equipment control
Energy industry: Remote monitoring and operation of power/oil/gas equipment
Logistics industry: Warehouse management, visual operation of goods sorting
Food and Beverage: Precise Control and Parameter Monitoring of Production Process
