Description
Introduction to ABB LT8978BV1 HIEE320639R1 Digital Input Module

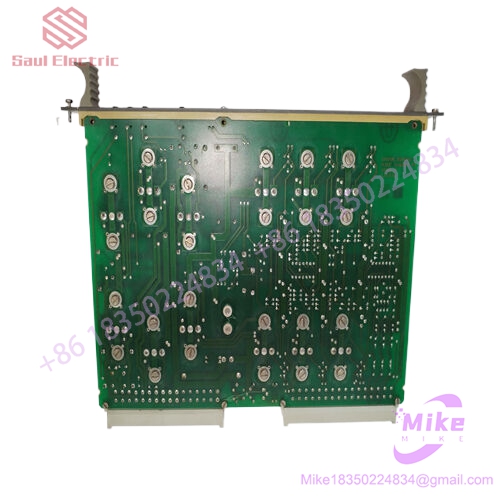

ABB LT8978BV1 HIEE320639R1 brand
ABB LT8978BV1 HIEE320639R1 is a digital input (DI) module in ABB’s industrial automation product line, belonging to the LT8978b V1 series. Its core function is to establish an electrically isolated digital signal acquisition channel between DCS or PLC control systems and on-site switches and sensors. It is a standard I/O node in ABB’s traditional control platforms (Advant Controller, Symphony INFI 90, Symphony Plus) and is widely used in a large number of still running old DCS projects.
core positioning
The module itself does not execute control logic, nor does it collect electrical quantities on the primary side of the site. Instead, it exists as a “digital signal acquisition+electrical isolation” unit – receiving dry contact signals from field devices (such as limit switches, proximity switches, relay contacts, buttons, etc.), converting them into standard digital signals after internal photoelectric isolation, and transmitting them to the DCS controller for logic processing. The core difference from ordinary terminal blocks is that it provides channel level electrical isolation, and each input achieves complete isolation between the field side and the system side, effectively blocking the impact of grounding circuits and field transients on the controller.
Basic Parameters
Material Number: LT8978BV1/HIEE320639R1 (also labeled as HIEE320639R0001)
Model: LT8978b V1 (V1 is the first generation version)
Type: Digital Input Module (DI Module)
System: ABB AC800M DCS, Advant Controller, Symphony INFI 90, Symphony Plus
Input channel: Multiple digital inputs (the specific number of channels depends on the configuration, commonly 8/16/32 channels)
Input signal type: Dry Contact/Wet Contact optional
Input voltage range: 24V DC (typical), supports a wide range of 12V DC to 48V DC
Electrical isolation: ≥ 1500V rms isolation between input channel and system side
Communication interface: Modulus Bus (compatible with Profibus DP), communicates through DCS controller
Working voltage: 24V DC (supporting a wide range of 21.6V to 31.2V)
Power consumption: about 1W~3W (typical value, varies with the number of channels)
Protection level: IP20 (installed inside the control cabinet)
Working temperature: -20 ° C to+60 ° C
Storage temperature: -40 ° C to+85 ° C
Installation method: DIN rail installation, compatible with ABB standard I/O subrack (S800 series)
Size: Approximately 100mm x 100mm x 50mm (standard module size)
Weight: Approximately 0.25kg to 0.4kg
Main functional features
Digital signal acquisition: Receive dry/wet contact signals from on-site switches, sensors, relay contacts, and other equipment, convert them into digital logic states (ON/OFF) recognizable by DCS, and use them for status monitoring, equipment start stop confirmation, safety interlocking, and other scenarios in process control.
High level electrical isolation: Each input channel achieves ≥ 1500V rms electrical isolation, completely isolating the on-site side from the system side. It can effectively block the impact of on-site grounding circuits, motor start stop transients, and inductive load switch arcs on DCS controllers, making it suitable for power plants and heavy industry sites with strong interference.
Compatibility of dry/wet contacts: The same module supports two input modes of dry contact (passive contact) and wet contact (active voltage signal). By switching through jumper or software configuration, it can adapt to the signal types of different field equipment without changing hardware, and reduce spare parts inventory.
Multi channel centralized acquisition: A single module can simultaneously acquire 8 to 32 digital signals (depending on the specific configuration), consolidating the on-site switches that originally required a large number of separate wiring into one module, greatly reducing the wiring workload and the number of wiring terminals in the control cabinet.
Status indication: Equipped with LED status indicator lights, it displays the input status and power status of each channel, providing intuitive on-site diagnostic feedback, making it easy to quickly determine which input is abnormal without the need for programming software.
Parameterized configuration: Supports online configuration of input filtering time, input type (dry/wet), communication parameters, etc. through ABB’s dedicated industrial control software. The configuration takes effect in real time and reduces downtime for debugging.
Start self check: Automatically detect the communication connection and module electrical ID with the DCS controller when powered on. Provide clear prompts in case of communication abnormalities or configuration mismatches to prevent the control system from misjudging the on-site status due to communication failures.
Hot swappable support: Supports replacement when the I/O subrack is powered on, and maintenance can be completed without cutting off the system power supply, reducing the risk of downtime.
Comparison with products in the same series
LT8978b V1 (HIEE320639R1): The first generation version only supports Module Bus/Profibus DP communication, without Ethernet ports, suitable for retrofitting old projects that do not require network communication, and has extremely high compatibility with spare parts.
LT8978b V2: The second generation version adds Ethernet communication capability and supports direct communication with upper level SCADA systems, making it suitable for scenarios that require access to modern network architectures.
LDGRB-01 (3BSE013177R1): Also an ABB digital input module, but positioned as a universal I/O slave station, supporting more communication protocols (such as Modbus TCP) and having a wider range of applications, but its native integration in the Symphony series is not as good as LT8978b V1.
TC520 (3BSE001449R1): ABB universal I/O module with similar functionality to LT8978b V1, but TC520 is designed for a wider range of DCS platforms (including 800xA), while LT8978b V1 is specifically designed for AC800M/INFI 90/Symphony, with higher compatibility and spare parts availability on these older platforms.
CI858-1 (3BSE018137R1): Advant Controller series Ethernet communication module, only provides communication function, does not have the digital input acquisition capability of LT8978b V1, and needs to be used in conjunction with CPU.
Typical application scenarios
Power industry: The switch quantity collection node of the generator set DCS collects signals such as valve open/close status, pump start/stop status, circuit breaker position, etc. The electrical isolation function protects the DCS from the transient effects of high-power equipment switches.
Petrochemical industry: DCS digital input nodes for refining and chemical plants, collecting signals from on-site limit switches, liquid level switches, pressure switches, etc., for process interlocking and safety systems.
Metallurgical industry: The status monitoring module of DCS for rolling mills and continuous casting machines collects equipment operation status and fault signals. The multi-channel design is suitable for scenarios where a large number of equipment statuses need to be monitored simultaneously.
Water treatment: DCS I/O nodes for pump stations and dosing systems, collecting signals from liquid level switches and flow switches, IP20 protection combined with control cabinet sealing to adapt to humid environments.
Manufacturing industry: PLC digital input expansion for machine tools and production lines, collecting signals such as travel switches, safety door switches, emergency stop buttons, etc. The compatibility of dry/wet contacts allows it to be directly connected to different types of on-site sensors.
