ABB IMASI23 Product Introduction
1. Product Overview
The IMASI23 is a high-performance analog input module manufactured by ABB, belonging to the ABB Advant OCS series (also referenced as part of the ABB Ability™ / Symphony / Harmony families). It is a core I/O module within the ABB Bailey Infi 90 and Net 90 control systems, designed specifically for industrial automation and process control applications. It is widely used in petrochemical, thermal power generation, steel manufacturing, energy management, and building automation industries.

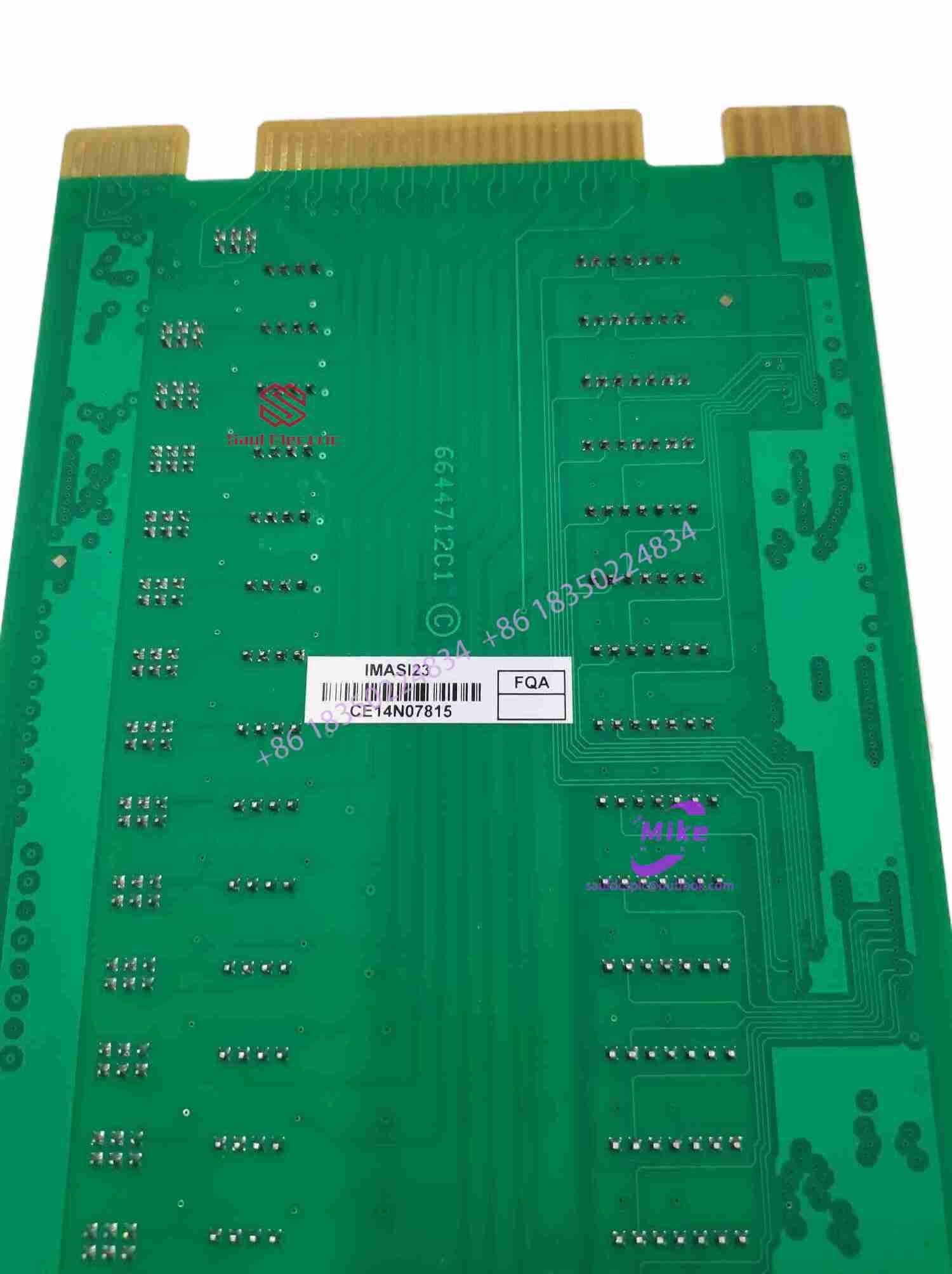

ABB IMASI23 Symphony Analog Input Module
2. Core Features & Specifications
| Parameter | Details |
|---|---|
| Channel Configuration | 16 channels analog input (8-channel version IMASI11 also available) |
| Signal Types | Thermocouple (TC: Type J/K/N/E, etc.), RTD (Pt100, Cu50), Millivolt, High Level |
| Accuracy | ±0.1% Full Scale (FS) |
| ADC Resolution | 24-bit high-resolution analog-to-digital converter |
| Isolation | Per-channel independent opto-isolation; 2500V AC/1min isolation between channels and between channel and system side |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Supply Voltage | Rated DC 24V |
| Dimensions | 9.0″ × 2.0″ × 13.0″ (22.9 cm × 5.1 cm × 33.0 cm) |
| Weight | Approx. 0.4 kg (15.0 oz) |
| Communication Protocols | Modbus RTU, Modbus TCP/IP, Ethernet, PROFINET, etc. |
| Certifications | CE, UL, CSA, EN61000-6-2, EN61000-6-4, etc. |
3. Model Number Breakdown
1IMA - S I 23
2 │ │ │ └─ Sequence Code: 2 = 16-channel, 3 = Industrial-grade fully isolated version
3 │ │ └───── Signal Type: I = Current / Standard analog signal
4 │ └──────── Series: S = Standard analog input
5 └────────────── Prefix: IMA = Advant OCS series analog input module
64. Key Advantages
4.1 Fully Isolated Anti-Interference Design
Adopts 8/16-channel independent opto-isolation technology, achieving 2500V AC isolation between each channel and the system side, effectively blocking:
- Industrial common-mode interference
- Ground loop noise
- Inter-channel signal crosstalk
Example: In a chemical plant reactor temperature monitoring application, 16 thermocouple transmitter output signals are collected simultaneously. Signals from high-temperature zones and low-temperature zones do not interfere with each other, with acquisition error ≤0.1% FS.
4.2 High-Precision Acquisition
The 24-bit ADC combined with precision signal conditioning circuitry ensures data accuracy, making it suitable for process control scenarios with extremely high precision requirements.
4.3 Flexible Configuration
- Each channel’s input type, range, and filtering parameters can be independently configured via ABB programming software
- No complex hardware adjustments required — software configuration adapts to different sensor needs
4.4 Easy Maintainability
- Firmware supports online updates
- Module supports hot-swappable replacement — online maintenance does not affect system operation
- Precise fault diagnostics reduce MTTR (Mean Time To Repair)
4.5 Wide Compatibility
Supports multiple industrial communication protocols and integrates seamlessly into PLC and DCS systems, compatible with ABB 800xA, Ovation, Bailey Infi 90, and other system architectures.
5. Typical Application Scenarios
| Industry | Application Examples |
|---|---|
| Petrochemical | Reactor temperature monitoring, pressure signal acquisition, reaction condition control |
| Thermal Power | Boiler pressure/temperature acquisition, combustion efficiency optimization |
| Steel Manufacturing | Blast furnace level control, smelting temperature monitoring |
| Energy Management | Power system parameter monitoring, energy consumption optimization |
| Building Automation | Air quality data acquisition, HVAC system regulation |
| Water Treatment | Water level, flow rate, water quality parameter monitoring |
| Manufacturing | Production line sensor data acquisition, process optimization |
6. Complementary Modules
The IMASI23 is commonly used with the following ABB modules:
| Module | Function |
|---|---|
| IMASO11 | Programmable analog output module (pairs with IMASI23) |
| IMDO14 | Combined analog input/output module |
| IMFEC12 | Field communication module |
| IMMFP12 | Multi-function processing module |
7. Wiring Precautions
- Twisted-pair shielded cables are strongly recommended
- Shield layer should be single-ended grounded (ground at the field device end for input modules; ground at the template end for output modules)
- Keep exposed wire length as short as possible to minimize interference pickup
- Direct connection to IC693CBL327/328 cables or custom-made cables to the module panel connector is supported
8. Summary
The ABB IMASI23 is a 16-channel fully isolated, 24-bit high-precision analog input module. With its outstanding anti-interference capability, flexible software configuration, wide signal compatibility, and industrial-grade reliability, it serves as a core data acquisition device in process control and industrial automation. Whether in harsh chemical environments or precision building control systems, the IMASI23 delivers stable and accurate data acquisition you can depend on.
