Description
ABB GJR2391500R1210 81EU01E-E is a universal input module in the ABB Procontrol P14 control system, belonging to the 8000 series I/O products, mainly used for on-site signal acquisition in industrial automation environments.
This module provides 16 input channels, and its biggest design highlight lies in its versatility. It can handle both digital signals such as limit switches, proximity sensors, and button on/off states, as well as analog signals such as 4-20mA current signals or 0-10V voltage signals output by pressure, flow, and temperature transmitters. This digital and analog compatible design greatly simplifies the wiring and spare parts management inside the cabinet, integrating 16 channels in a module that is only 20mm wide. The channel density is very high, making it an efficient solution for control cabinets with limited space.

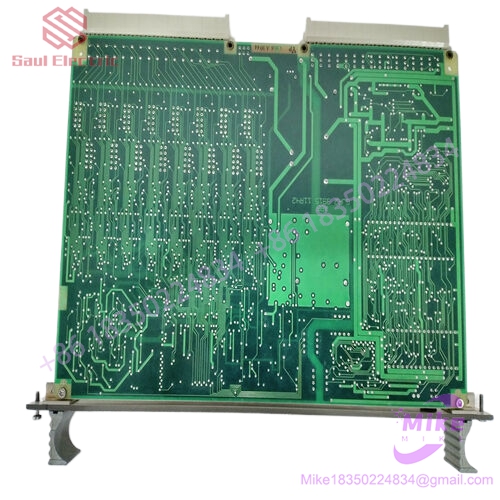

ABB GJR2391500R1210 81EU01E-E
In the system architecture, the 81EU01E-E communicates with the Procontrol P14 controller through the Railbus serial data bus and is part of the 8000 series node architecture. Each I/O module location has a unique address, and module training is not required during installation. This module supports HART protocol transparent transmission function, which can enjoy the cost advantage of fieldbus while being compatible with existing HART smart instruments, suitable for factory upgrades and expansion scenarios.
In terms of physical specifications, the module size is 198mm deep by 261mm high by 20mm wide, with a total weight of approximately 0.5kg. It is installed on DIN rails, connected with screw terminals, and has a protection level of IP20. It needs to be installed inside the control cabinet for use. The working environment meets industrial standards and can operate stably under harsh conditions such as vibration, temperature fluctuations, or electromagnetic interference.
This product is widely used in process industries such as power generation, petrochemicals, and water treatment, responsible for converting underlying physical signals into data that can be recognized by control systems. It should be noted that there are multiple revised versions of 81EU01E-E, such as 81EU01G-E, GJR2391511R42, etc. When replacing, it is necessary to check the complete order number GJR2391500R1210 to ensure that the hardware logic and interface definitions are completely consistent.
The ABB Procontrol P14 series has been officially marked by ABB as gradually phased out of the market and replaced by the AC500 PLC platform. But there are still a large number of equipment in use in the global stock industrial system, and spare parts can be obtained through third-party channels.
