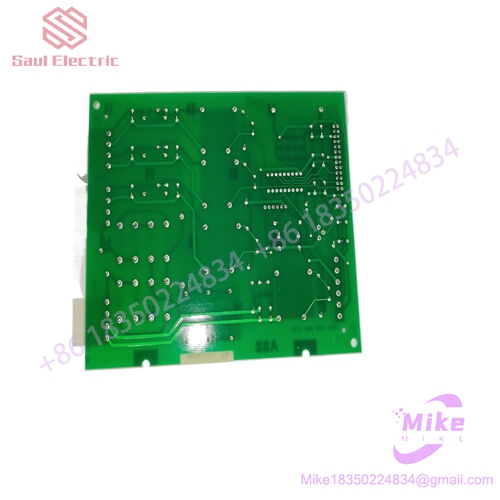

ABB DSTS104 Input/Output Module
Introduction to ABB DSTS104 Digital Input/Output Fixture Module
ABB DSTS104 is a digital I/O clip on module in the S800 I/O architecture of ABB AC800M distributed control system. It is specifically used to collect on-site switch signals and drive actuators. It is the core component for digital signal aggregation and distribution in remote I/O stations of AC800M system.
core positioning
This module itself does not have independent communication capabilities and must be installed on basic units (such as DSDP140B, DSDP160, etc.) or expansion racks to work, with communication and scheduling managed by the basic unit. It is the digital signal interface layer in the S800 I/O station, responsible for connecting switch signals such as on-site buttons, limit switches, relay contacts, etc. to the control system, and issuing control instructions to on-site solenoid valves, contactor coils, indicator lights, and other actuators.
Basic Parameters
ABB DSTS104 Input/Output Module
Material number: DSTS104 (specific revision version number subject to actual nameplate)
Model: DSTS104
Series: S800 I/O Digital Fixture Module
System: ABB AC800M DCS
Channel type: digital input+digital output (the specific number of channels is subject to the actual model configuration, usually a combination of multiple DI and multiple DO channels)
Signal type: Digital input supports 24V DC switch signal; Digital output supports relay dry contact output
Communication interface: Modulus Bus, compatible with Profibus DP
Working voltage: 24V DC
Electrical isolation: ≥ 1500V isolation between the controller side and the I/O module side
Protection level: IP20, suitable for installation inside control cabinets
Working temperature: -20 ° C to+60 ° C
Storage temperature: -40 ° C to+85 ° C
Installation method: DIN rail installation, fixed to the basic unit or expansion rack through fixtures
Main functional features
Fixture based installation design: Adopting a clip on structure, it can be quickly fixed on the basic unit or expansion rack without the need for additional terminal blocks, simplifying the on-site installation process and reducing the risk of wiring errors.
Relay output characteristics: The digital output channels are all relay dry contacts, supporting AC and DC loads, especially suitable for driving inductive loads such as solenoid valves, contactor coils, alarms, etc. This is the key difference from transistor output modules.
Loop monitoring: supports the detection of abnormalities such as input open circuit, output short circuit, communication interruption, etc. The fault information is reported by the basic unit to the main controller, and diagnostic data can be viewed through system software for quick positioning of the fault channel.
Status indication: Equipped with operation indicator lights, channel status indicator lights, and power indicator lights, it can quickly determine the working status of modules and channels on site without the need for additional diagnostic tools.
Electrical isolation: achieve ≥ 1500V electrical isolation between input channels, output channels, and communication ports, effectively suppressing the impact of on-site electromagnetic interference on the control system and improving system safety.
Parameterized configuration: Supports online configuration of I/O parameters through ABB dedicated industrial control software, including channel filtering, etc. The configuration takes effect in real time, reducing downtime for debugging.
Hot plug support: Supports online hot plug replacement, maintenance can be completed without cutting off the power supply of the I/O station system, reducing the risk of downtime.
Start self check: Automatically check the electrical ID of the module when powered on, and do not enter the running state when it does not match the configuration, to prevent control abnormalities caused by mismatches.
Typical application industries
Metallurgical industry: remote I/O station digital signal access for equipment such as blast furnaces and rolling mills.
Oil and gas: acquisition and driving of switch values for wellhead control units.
Glass manufacturing: switch monitoring of melting furnace equipment.
Aluminum industry: digital signal acquisition for electrolytic cell control system.
Petrochemical industry: signal acquisition of reactor valve switches and driving of safety interlock relays.
Power industry: switch quantity acquisition and relay drive for auxiliary equipment of generator sets.
Water treatment: monitoring and control of pump station valve status, driving of dosing system actuators.
Paper printing: On/off monitoring of the transmission system of paper machines.
Textile printing and dyeing: digital signal acquisition for dyeing machines and shaping machines.
Comparison with products in the same series
DSTA180 (57160001-ET) is a connection unit that focuses on communication interface conversion and does not handle on-site I/O signals. DSTD108 (57160001-ABD/1) is a 16 DI+16 DO digital connection unit with more channels and basic communication management capabilities. The core positioning of DSTS104 is the “digital I/O fixture module”, characterized by compact fixture installation and relay output, suitable for scenarios that require rapid expansion of digital I/O channels in limited space. It is an effective supplement to standard modules such as DSTD108.
