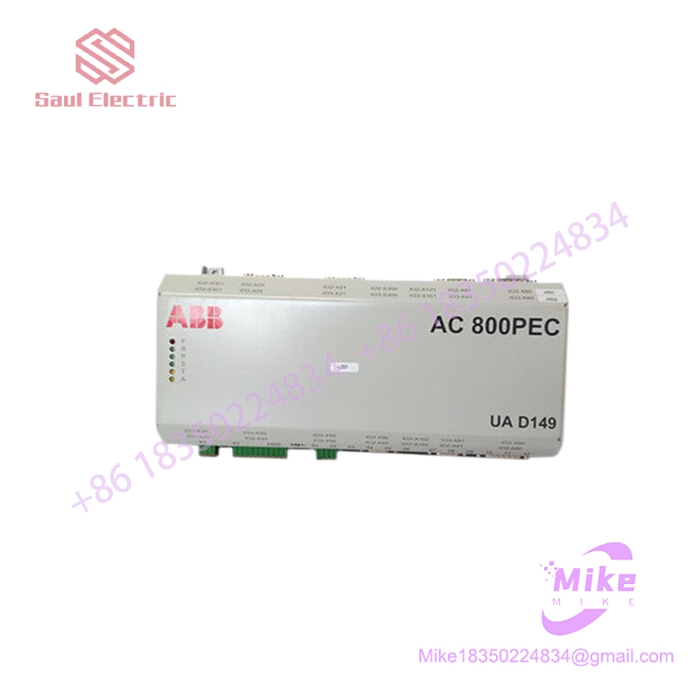

ABB 3BHE014135R0011 UAD149A0011 Module

Brand: ABB

Product Series: AC 800PEC / UNITROL Power Electronics Control Series

Model: UAD149A0011 (Part Number: 3BHE014135R0011)

Product Type: Enhanced Processor and Combi I/O Module / Static Excitation Controller

ABB 3BHE014135R0011 UAD149A0011 Module

Technical Parameters:

Processing Core: High-performance embedded digital signal processing architecture optimized for microsecond-level calculation of synchronous power loops, fast closed-loop regulation, and transient tracking.

I/O Configuration: Multipurpose combination layout comprising 8 channels of fast digital inputs, 8 channels of robust binary digital outputs, 4 channels of high-precision analog inputs (typically 4-20 mA), and 2 channels of analog outputs (4-20 mA).

Excitation Drive Interface: Integrated hardware paths optimized to distribute coordinated field current gating pulses, receiving feedback strings directly from load cells or power bridge sensors.

Communication Interfaces: Built-in high-speed physical channels supporting Modbus RTU/TCP, Profibus DP, and RS-485 serial networks, along with dedicated Ethernet interfaces for direct links to ABB 800xA DCS environments.

Response Latency: High-speed processing metrics allowing control loop computation and command routing within execution windows of less than 1 millisecond.

Galvanic Isolation: Built-in electrical isolation barriers across all analog and digital interface channels to shield core processing elements from field-side voltage transients, ground loops, and high dv/dt switching emissions.

Internal Logic Power: Configured to operate on standard industrial 24 VDC control power distribution networks with integrated short-circuit and polarity safeguards.

Circuit Resilience: High-density multi-layer printed circuit board layout treated with a specialized industrial-grade conformal coating to withstand conductive dust, moisture, and extreme electromagnetic interference (EMI).

Industrial Sectors:

Power Generation Utilities (Hydroelectric, Thermal, Gas, and Renewable Power Plants), High-Voltage Grid Substations, Heavy Metallurgical Mills, Marine Propulsion Systems, and Large-Scale Manufacturing Automation.

Application Scenarios:

1. Static Excitation Control System Hub: Installed within ABB UNITROL excitation cubicles to function as the core Automatic Voltage Regulator (AVR) processor, regulating the field current of synchronous generators to maintain a stable terminal voltage.

2. High-Power Power Electronics Synchronization: Deployed inside static frequency converters (SFC) or medium-voltage drive panels to aggregate critical analog and digital sensor feedback, synchronizing heavy semiconductor switching topologies under severe load changes.

3. Synchronous Generator Safety Interlocking: Integrated into power distribution rooms to handle fast-acting real-time interlocking routines, executing quick demagnetization protection and safety trips if system overcurrent or overvoltage limits are crossed.

4. Marine Grid Load Stabilization: Utilized inside the main electric propulsion and auxiliary power cabinets of large industrial vessels to process dynamic load balancing metrics, preventing network frequency destabilization caused by high thruster demands.
