ABB 5SHX2645L0002/3BHB012961R0001 IGCT power module product introduction
Product Name: ABB 5SHX2645L0002 (Market Model)/3BHB012961R0001 (ABB Internal Material Code)/3BHE009681R0101 (Associated Internal Code) Integrated Gate Converter Thyristor (IGCT) Power Module
Brand: ABB (Swiss ABB Group)
Series: ABB SHX series high-power IGCT module, Reverse Conducting IGCT
Product Type: High Voltage High Power Semiconductor Switching Devices, ABB Medium Voltage Inverter Core Power Components
Important note: 3BHB012961R0001 is the internal material code of ABB, 5SHX2645L0002 is the external market model, and 3BHE009681R0101 is another internal code for the same product. All three are part of the same product. The “2645” in the model directly corresponds to a rated current of 2645A.

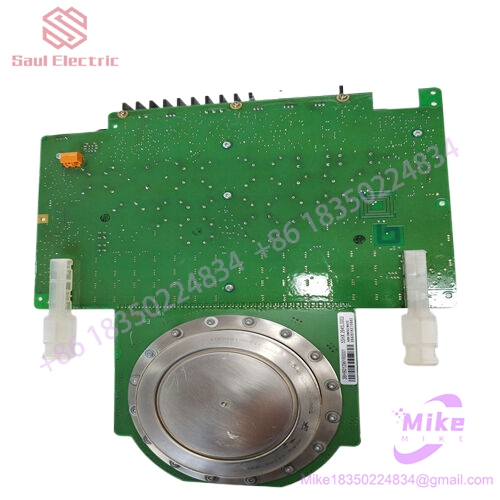

5SHX2645L0002 3HB012961R0001 ABB
Core functions:
This module is equipped with an IGCT chip, anti parallel diode, and gate drive circuit, serving as an electronic switch in high-voltage AC circuits, achieving 0 to 100% stepless power control. As the core power device of the active rectification unit (ARU) in the ACS6000 series medium voltage frequency converter, each phase is composed of IGCT, diodes, and clamp capacitors, and is powered by an independent gate power supply unit (GUSP, such as 5SYA 2031, 5SYA 2032, etc.). Widely used in high-power scenarios such as AC motor speed regulation, renewable energy power conversion, and grid reactive power compensation. This module belongs to the high current level in the SHX series, between 1960A and higher levels, and is a commonly used core spare part for ABB medium voltage frequency converters.
Key electrical parameters:
Rated voltage: 3300V AC
Rated current: 2645A (directly corresponding to the model number)
Peak forward current: about 4200A (typical value, about 1.6 times the rated current)
Conduction voltage drop: approximately 2.5V (typical value)
Gate trigger current: 0.5A
Working temperature: -40 ° C to+85 ° C
Storage temperature: -40 ° C to+125 ° C
Switching frequency: Suitable for intermediate frequency applications (optimized for intermediate frequency, usually below 1kHz)
Protection level: IP65 (module level, installed inside the control cabinet)
Size: Approximately 285mm x 220mm x 100mm (Standard Edition)
Weight: Approximately 8.5kg (Standard Edition)
Cooling method: Water cooling
Core features:
High non buffering shutdown rating, strong shutdown capability, no need for buffering circuit
For intermediate frequency optimization, low switching losses and high operating efficiency
Low on state voltage drop, minimizing power loss to the greatest extent possible
High electromagnetic immunity and strong anti-interference ability
Simple control interface, supporting status feedback
Built in multiple protection functions (overcurrent, overvoltage, undervoltage, etc.)
Modular design for easy on-site replacement and maintenance
Ceramic sealed shell, dustproof, waterproof, and anti pollution, suitable for harsh industrial environments
Reverse conduction design, integrated anti parallel diodes, simplifies external circuits
IGCT technology background:
IGCT (Integrated Gate Commutated Thyristor) was introduced by ABB in 1997 and is a technological evolution of GTO thyristors. Integrating and packaging GTO chips with anti parallel diodes and gate driver circuits combines the high power density and low on state losses of GTO with the simple gate driver and high switching frequency advantages of IGBT. Compared to traditional GTOs, the shutdown time is shortened by about 30 times. Compared to IGBTs of the same voltage level, IGCT has a larger current capacity (up to several thousand amperes) and is more suitable for ultra-high voltage and high-power scenarios above 3300V. ABB, along with Infineon and Mitsubishi, is one of the top three global IGCT suppliers. This model 2645A belongs to the high current power level in the SHX series and is currently one of the commonly used models with the highest current level in the active rectifier unit of ABB medium voltage frequency converters.
Typical application scenarios:
High Voltage Direct Current Transmission (HVDC): Used for direct current conversion and filtering, it has been applied in ± 800kV ultra-high voltage projects
Wind power generation: Control the speed and power output of the generator to improve power generation efficiency
Photovoltaic power generation: achieving high power point tracking (MPPT) to improve conversion efficiency
Belt drive system for coal mine main shaft: efficient and reliable drive of high-power motor
Industrial frequency converter: As a core power device, it realizes the frequency conversion and voltage regulation of electrical energy, mainly equipped with ABB ACS6000 series medium voltage frequency converter active rectification unit
Rail Transit: Train Auxiliary Inverter, Motor Drive System
Electric Vehicle Traction System: Power Conversion and Control
Renewable energy storage system: power conversion in battery energy storage system
Power grid infrastructure: power transmission and distribution, reactive power compensation, voltage regulation
Large motor drive: speed control of high-power AC motors such as pumps, fans, compressors, etc
Linear particle accelerator: used for high-voltage switches in klystron modulators (this model has clear application cases)
Compatible devices:
Mainly used in conjunction with ABB ACS6000 series medium voltage frequency converter active rectifier unit, the gate power supply unit model is 5SYA series (such as 5SYA 2031, 5SYA 2032, 5SYA 2036, etc.). It can also be integrated into other high-voltage and high-power converter devices.
Associated model (same series SHX series):
3BHL000384P0101/5SHX0360D0001:360A/3300V (low power end)
3BHL000385P0101 / 5SHX0845F0001：845A / 3300V
3BHL000386P0101 / 5SHX0660F0001：660A / 3300V
3BHL000389P0104/5SHX2645L0004:2645A/3300V (higher current level, same level as this model)
3BHL000390P0104 / 5SHX1960L0004：1960A / 3300V
3BHL000391P0101 / 5SHX1445H0001：1445A / 3300V
3BHL000392P0101 / 5SHX1060H0001：1060A / 3300V
5SHY3545L0010/3BHB013088R000:3500A/3300V (SHY series, higher current)
5SHY4045L0004/3BHB018162R0001:4000A/3300V (SHY series, highest current level)
